HiFi-Stereo-Steuergerät 7500/ST 971.138A Ch= 771.138A; Nordmende, (ID = 105023) Radio

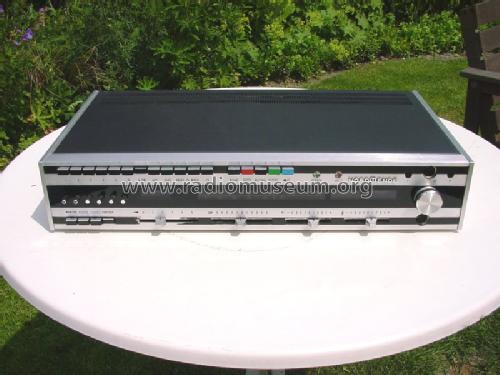

Nordmende,: HiFi-Stereo-Steuergerät 7500/ST 971.138A Ch= 771.138A [Radio] ID = 105023 800x600
Select picture or schematic to display from thumbnails on the right and click for download.
For model HiFi-Stereo-Steuergerät 7500/ST 971.138A Ch= 771.138A, Nordmende, Norddeutsche Mende-Rundfunk GmbH (Sterling), Bremen-Hemelingen

Country:  Germany
Manufacturer / Brand:  Nordmende, Norddeutsche Mende-Rundfunk GmbH (Sterling), Bremen-Hemelingen
Year: 1971/1972 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 61: BF245 AF106 BF184 BFY39IV BFY43 BC107 BC108 BC116 BC125 BC126 BC134 BC173 BC262 BD142 AC117 ST12_Intermetall BB104 AA112 AA119 OA90 BA128 SiG0,5/50R ZD6,8 ZD16 ZD24 Si-Br-Gl
Main principle Superheterodyne (common); ZF/IF 10700 kHz
Tuned circuits 16 FM circuit(s)
Wave bands FM Broadcast Band Only
Details
Power type and voltage Alternating Current supply (AC) / 110; 130; 220; 240 Volt
Loudspeaker - This model requires external speaker(s).
Power out 60 W (unknown quality)
from Radiomuseum.org Model: HiFi-Stereo-Steuergerät 7500/ST 971.138A Ch= 771.138A - Nordmende, Norddeutsche Mende-
Material Metal case
Shape Book-shelf unit.
Dimensions (WHD) 500 x 96 x 270 mm / 19.7 x 3.8 x 10.6 inch
Notes Halbleiter teils mehrfach vorhanden

UKW: 87,5 - 108 MHz

Vollstereo, NF-Verstärker mit zwei Endstufen je 20 W (Sinus).
Net weight (2.2 lb = 1 kg) 11.5 kg / 25 lb 5.3 oz (25.33 lb)
Price in first year of sale 1'098.00 DM
External source of data Erb
Source of data Handbuch VDRG 1971/1972
Mentioned in -- Original-techn. papers.
