• Country
• Germany

• Manufacturer / Brand
• Nordmende, Norddeutsche Mende-Rundfunk GmbH (Sterling), Bremen-Hemelingen

• Year
• 1975

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 115743

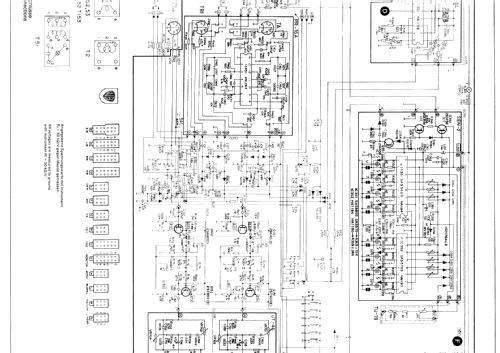

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 51

• Semiconductors

• Main principle
• Superheterodyne (common)

• Wave bands
• Broadcast, Long Wave, Short Wave plus FM or UHF.

• Details
• Other Combination - see Notes

• Power type and voltage
• Alternating Current supply (AC) / 110; 220 Volt

• Loudspeaker
• - This model requires external speaker(s).

• Power out
• 20 W (unknown quality)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: HiFi-Stereo-Steuergerät 7020 SCP 6.156G/H - Nordmende, Norddeutsche Mende-

• Shape
• Tablemodel with Push Buttons.

• Dimensions (WHD)
• 760 x 200 x 390 mm / 29.9 x 7.9 x 15.4 inch

• Notes
• 6 ICs.
  Kassettenrecorder und Phono-Chassis = Elac 810 mit Magnetsystem D-155-12.

• Literature/Schematics (1)
• -- Original-techn. papers.

• Literature/Schematics (2)
• - - Manufacturers Literature

• Author
• Model page created by Wolfgang Bauer. See "Data change" for further contributors.
