• Country
• Germany

• Manufacturer / Brand
• Nordmende, Norddeutsche Mende-Rundfunk GmbH (Sterling), Bremen-Hemelingen

• Year
• 1973/1974

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 29260

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 9

• Semiconductors
• CS9016 CS9018 1N60 CS9018 1N60 CS1312 CS9018 1N60 1N60 1N34 CS1312 CS1312 CDG24 CDG24 CS1909 CS1910 Si-Br-Gl

• Main principle
• Superheterodyne (common); ZF/IF 460/10700 kHz

• Tuned circuits
• 5 AM circuit(s)     7 FM circuit(s)

• Wave bands
• Broadcast (BC) and FM or UHF.

• Power type and voltage
• Line / Batteries (any type) / 220; (4 ×1,5) Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical

• Power out
• 0.33 W (unknown quality)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org

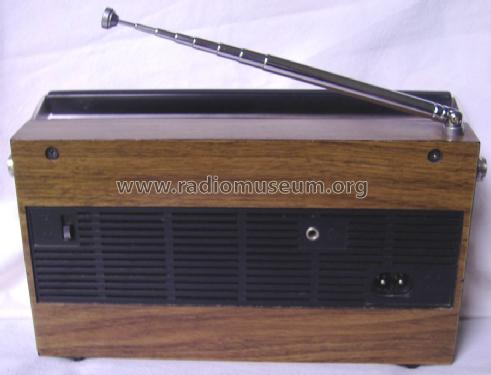

• Model: Kent-n 974.193.A - Nordmende, Norddeutsche Mende-

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 210 x 115 x 55 mm / 8.3 x 4.5 x 2.2 inch

• Notes
• Ausgangsleistung bei Netzbetrieb = 0,4 W.

  UKW: 87,5 - 104 MHz
  MW: 510 - 1620 kHz


• Net weight (2.2 lb = 1 kg)
• 0.8 kg / 1 lb 12.2 oz (1.762 lb)

• External source of data
• Erb

• Source of data
• Katalog RFP 1973

• Mentioned in
• -- Original-techn. papers.
