Mambo K300 (989.136H)

Mambo K300 ; Nordmende, (ID = 647498) Radio Mambo K300 ; Nordmende, (ID = 1637627) Radio
Mambo K300 ; Nordmende, (ID = 647496) Radio Mambo K300 ; Nordmende, (ID = 647495) Radio
Mambo K300 ; Nordmende, (ID = 647494) Radio Mambo K300 ; Nordmende, (ID = 647499) Radio
Mambo K300 ; Nordmende, (ID = 647500) Radio Mambo K300 ; Nordmende, (ID = 793750) Radio
Mambo K300 ; Nordmende, (ID = 793751) Radio Mambo K300 ; Nordmende, (ID = 793752) Radio
Use red slider bar for more.

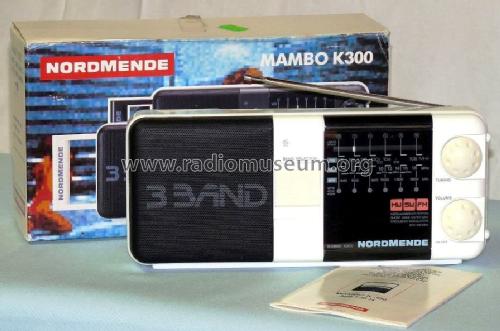

Mambo K300 ; Nordmende, (ID = 647498) Radio
Nordmende,: Mambo K300 [Radio] ID = 647498 933x385
Select picture or schematic to display from thumbnails on the right and click for download.
For model Mambo K300 (989.136H), Nordmende, Norddeutsche Mende-Rundfunk GmbH (Sterling), Bremen-Hemelingen

Country:  Germany
Manufacturer / Brand:  Nordmende, Norddeutsche Mende-Rundfunk GmbH (Sterling), Bremen-Hemelingen
Year: 1989 ? Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) Semiconductors present.
Main principle Superheterodyne (common)
Wave bands Broadcast, Short Wave plus FM or UHF.
Details
Power type and voltage Line / Batteries (any type) / 220 / C: 4 x 1,5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 9 cm = 3.5 inch
Power out 2 W (unknown quality)
from Radiomuseum.org Model: Mambo K300 - Nordmende, Norddeutsche Mende-
Material Modern plastics (no Bakelite or Catalin)
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 275 x 120 x 50 mm / 10.8 x 4.7 x 2 inch
Notes 3-Band Portable mit Tragegriff an der linken Seite, Wellenbereiche: UKW-87,5-108MHz / MW-525-1610kHz / KW-5,8-18,0MHz, Telescopantenne (63cm) für UKW/KW, Ferritantenne für MW, Kopfhöreranschluß über Klinkenbuchse 3,5mm
Net weight (2.2 lb = 1 kg) 0.950 kg / 2 lb 1.5 oz (2.093 lb)
Price in first year of sale 54.00 DM
Mentioned in Taxliste Franzis Verlag

Model page created by Peter Roggenhofer † 25.4.18. See "Data change" for further contributors.



All listed radios etc. from Nordmende, Norddeutsche Mende-Rundfunk GmbH (Sterling), Bremen-Hemelingen
Here you find 1713 models, 1609 with images and 1250 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
