Mambo RG2053 981.192H
Nordmende, Norddeutsche Mende-Rundfunk GmbH (Sterling), Bremen-Hemelingen
- Country
- Germany
- Manufacturer / Brand
- Nordmende, Norddeutsche Mende-Rundfunk GmbH (Sterling), Bremen-Hemelingen
- Year
- 1980/1981
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 120227
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Transistors
- 5
- Main principle
- Superheterodyne (common); ZF/IF 455/10700 kHz
- Wave bands
- Broadcast, Long Wave and FM or UHF.
- Power type and voltage
- Line / Batteries (any type) / 220 / AA: 4 x 1.5 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 7.7 cm = 3 inch
- Power out
- 1.1 W (unknown quality)
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org
- Model: Mambo RG2053 981.192H - Nordmende, Norddeutsche Mende-
- Shape
- Portable set > 8 inch (also usable without mains)
- Dimensions (WHD)
- 210 x 120 x 54 mm / 8.3 x 4.7 x 2.1 inch
- Notes
-
Wave ranges:
UKW: 87,5 - 108 MHz
MW: 525 - 1610 kHz

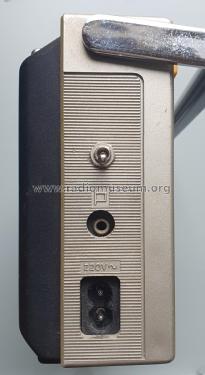

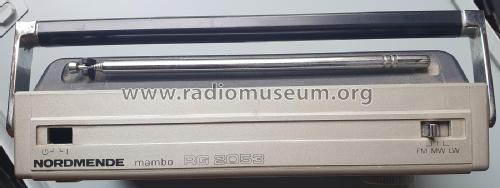

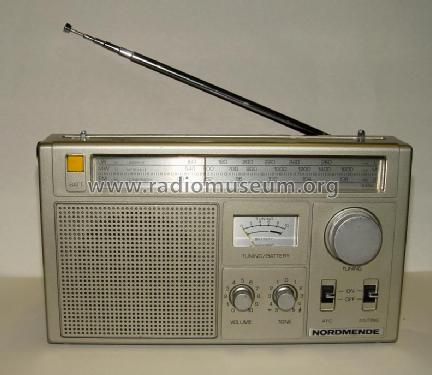

LW: 152 - 270 kHzFront: battery charge/tuning indicator, volume and tone knobs, tuning knob, AFC on/off and muting on/off switches, dial and orange button to activate the battery control. On the top, on/off switch and switch for the range selection, external telescopic antenna, rotatable on a single plane, 6 sections, 69 cm. On the left side, power supply and earphone sockets. On the back side, access to the battery compartment.
Rigid handle, with full excursion.
- Net weight (2.2 lb = 1 kg)
- 0.7 kg / 1 lb 8.7 oz (1.542 lb)
- Source of data
- -- Original-techn. papers.
- Author
- Model page created by Wilfried Winter. See "Data change" for further contributors.
