• Year
  • 1975 ??
  • Category
  • Service- or Lab Equipment
  • Radiomuseum.org ID
  • 298143

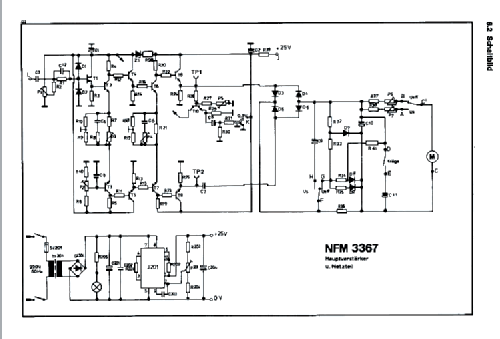

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Transistors
  • 19
  • Wave bands
  • - without
  • Power type and voltage
  • Alternating Current supply (AC) / 110; 220 Volt
  • Material
  • Metal case
  • from Radiomuseum.org
  • Model: Niederfrequenz-Millivoltmeter NFM 3367 - Nordmende, Norddeutsche Mende-
  • Shape
  • Tablemodel without push buttons, Mantel/Midget/Compact up to 14
  • Dimensions (WHD)
  • 135 x 210 x 220 mm / 5.3 x 8.3 x 8.7 inch
  • Notes
  • Niederfrequenz-Millivoltmeter

    Wechselspannungsbereiche:
    1,3,10,30,100,300 mV
    1,3,10,30,100,300 V

    Leistungsmessbereiche:
    0,1-1-10-100 W (an 4/8/16 Ω)

    (Leistungsmessung nur in Verbindung mit LZ3397)

    Messunsicherheit bei Nennfrequenz 1 kHz: ± 3%

    Halbleiter jeweils einmal pro Typ gelistet.

  • Net weight (2.2 lb = 1 kg)
  • 2 kg / 4 lb 6.5 oz (4.405 lb)
  • Author
  • Model page created by Wolfgang Pohl. See "Data change" for further contributors.
