• Country
• Germany

• Manufacturer / Brand
• Nordmende, Norddeutsche Mende-Rundfunk GmbH (Sterling), Bremen-Hemelingen

• Year
• 1968 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 357555

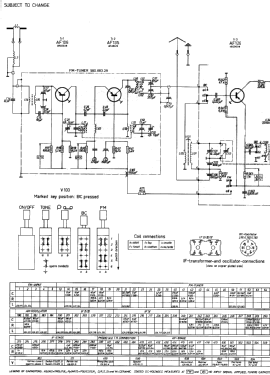

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 10

• Semiconductors
• AF106 AF135 AF126 AF126 AF126 AC163 AC163 AC117 AC175 AC117 AA112 AA112 AA112 ZD10 SiG0,5/50R B30C350

• Main principle
• Superheterodyne (common); ZF/IF 460/10700 kHz

• Tuned circuits
• 7 AM circuit(s)     10 FM circuit(s)

• Wave bands
• Broadcast (BC) and FM or UHF.

• Power type and voltage
• Alternating Current supply (AC) / 110; 220 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical

• Material
• Wooden case

• from Radiomuseum.org
• Model: Norma-Luxus C 969.120 E - Nordmende, Norddeutsche Mende-

• Shape
• Tablemodel without push buttons, Mantel/Midget/Compact up to 14

• Dimensions (WHD)
• 385 x 220 x 140 mm / 15.2 x 8.7 x 5.5 inch

• Notes

• Anschluss für Plattenspieler/Tonbandgerät über DIN-Buchse. Klangtaste.

  Gehäuse: Holz mit Kunststoff-Vorderfront.

• Mentioned in
• - - Manufacturers Literature

• Author
• Model page created by José Manuel Silvestre. See "Data change" for further contributors.
