Universal-Oszillograph UO960

Universal-Oszillograph UO960; Nordmende, (ID = 43088) Equipment

Universal-Oszillograph UO960; Nordmende, (ID = 43089) Equipment

Universal-Oszillograph UO960; Nordmende, (ID = 1878692) Equipment
Universal-Oszillograph UO960; Nordmende, (ID = 1116041) Equipment Universal-Oszillograph UO960; Nordmende, (ID = 43093) Equipment
Use red slider bar for more.

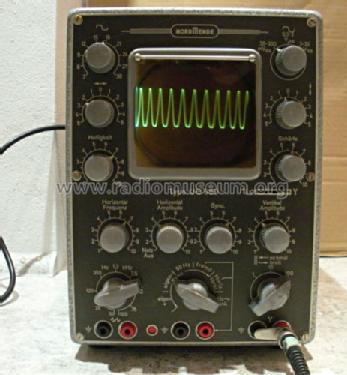

Universal-Oszillograph UO960; Nordmende, (ID = 1116041) Equipment
Nordmende,: Universal-Oszillograph UO960 [Equipment] ID = 1116041 463x500
Select picture or schematic to display from thumbnails on the right and click for download.
For model Universal-Oszillograph UO960, Nordmende, Norddeutsche Mende-Rundfunk GmbH (Sterling), Bremen-Hemelingen:
(c) eBay-Verkäufer - kunonollutta - 11. Dez. 2011 - 290640634835

Country:  Germany
Manufacturer / Brand:  Nordmende, Norddeutsche Mende-Rundfunk GmbH (Sterling), Bremen-Hemelingen
Year: 1955/1956 Category: Service- or Lab Equipment
Valves / Tubes 13: ECC85 EF42 EL41 EL41 EF42 ECC85 EF42 EF42 EAA91 EZ81 EY51 EY51 DG10-14 150C2
Details
Power type and voltage Alternating Current supply (AC) / 110; 125; 220; 235 Volt
Loudspeaker - - No sound reproduction output.
Power out
from Radiomuseum.org Model: Universal-Oszillograph UO960 - Nordmende, Norddeutsche Mende-
Material Metal case
Shape Tablemodel, with any shape - general.
Notes

Y-Verstärker dreistufig, wechselspannungsgekoppelt.
Gesamt-Beschleunigungsspannung 2750 V.

Price in first year of sale 895.00 DM
Collectors' prices
Source of data -- Schematic
Literature/Schematics (1) - - Manufacturers Literature
