Oxford 5.198 H

Oxford 5.198 H; Nordmende, (ID = 261522) Radio

Oxford 5.198 H; Nordmende, (ID = 261523) Radio

Oxford 5.198 H; Nordmende, (ID = 261525) Radio

Oxford 5.198 H; Nordmende, (ID = 261527) Radio

Oxford 5.198 H; Nordmende, (ID = 261528) Radio

Oxford 5.198 H; Nordmende, (ID = 655490) Radio
Oxford 5.198 H; Nordmende, (ID = 261529) Radio Oxford 5.198 H; Nordmende, (ID = 970452) Radio

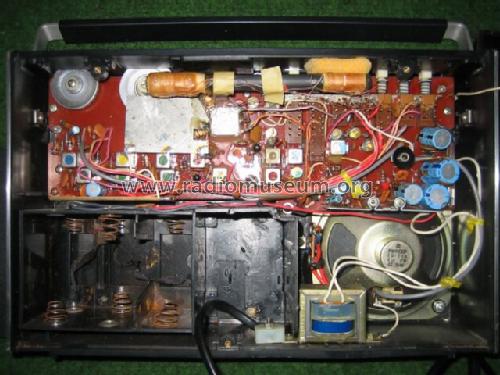

Oxford 5.198 H; Nordmende, (ID = 970453) Radio Oxford 5.198 H; Nordmende, (ID = 970454) Radio
Oxford 5.198 H; Nordmende, (ID = 970455) Radio Oxford 5.198 H; Nordmende, (ID = 970456) Radio
Oxford 5.198 H; Nordmende, (ID = 2514101) Radio Oxford 5.198 H; Nordmende, (ID = 2514103) Radio
Oxford 5.198 H; Nordmende, (ID = 2514105) Radio Oxford 5.198 H; Nordmende, (ID = 2514107) Radio
Use red slider bar for more.
Oxford 5.198 H; Nordmende, (ID = 261529) Radio
Nordmende,: Oxford 5.198 H [Radio] ID = 261529 499x457
Select picture or schematic to display from thumbnails on the right and click for download.
For model Oxford 5.198 H, Nordmende, Norddeutsche Mende-Rundfunk GmbH (Sterling), Bremen-Hemelingen

Country:  Germany
Manufacturer / Brand:  Nordmende, Norddeutsche Mende-Rundfunk GmbH (Sterling), Bremen-Hemelingen
Year: 1977 ?? Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 10:
Main principle Superheterodyne (common); ZF/IF 460 kHz
Tuned circuits 5 AM circuit(s)     9 FM circuit(s)
Wave bands Broadcast, Long Wave, more than 2 x SW plus FM or UHF.
Details
Power type and voltage Line / Batteries (any type) / 220 / 6 × 1,5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
Power out 2 W (unknown quality)
from Radiomuseum.org Model: Oxford 5.198 H - Nordmende, Norddeutsche Mende-
Material Modern plastics (no Bakelite or Catalin)
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 310 x 200 x 95 mm / 12.2 x 7.9 x 3.7 inch
Net weight (2.2 lb = 1 kg) 2.4 kg / 5 lb 4.6 oz (5.286 lb)
Literature/Schematics (1) -- Original-techn. papers.

Model page created by Josef Pilz. See "Data change" for further contributors.
