- Country
- Germany
- Manufacturer / Brand
- Nordmende, Norddeutsche Mende-Rundfunk GmbH (Sterling), Bremen-Hemelingen
- Year
- 1961/1962
- Category
- Television Receiver (TV) or Monitor
- Radiomuseum.org ID
- 105490

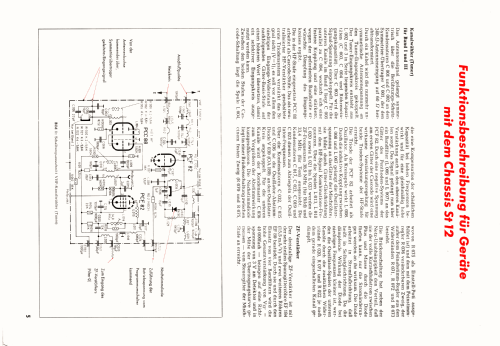

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 17
- Valves / Tubes
- AW59-90
- Main principle
- Superheterodyne (common); ZF/IF 38900 kHz
- Wave bands
- Wave Bands given in the notes.
- Details
- Radio Control (+Remote Wire etc)
- Power type and voltage
- Alternating Current supply (AC) / 220 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
- Material
- Wooden case
- from Radiomuseum.org
- Model: Panorama [59 cm] - Nordmende, Norddeutsche Mende-
- Shape
- Tablemodel, with any shape - general.
- Dimensions (WHD)
- 590 x 495 x 385 mm / 23.2 x 19.5 x 15.2 inch
- Notes
- VHF/UHF; anschraubbare Beine gegen Mehrpreis (17,- DM).
- Net weight (2.2 lb = 1 kg)
- 31 kg / 68 lb 4.5 oz (68.282 lb)
- Price in first year of sale
- 968.00 DM
- Source of data
- HdB d.Rdf-& Ferns-GrH 1961/62
- Author
- Model page created by Bernd P. Kieck. See "Data change" for further contributors.
