Parsifal-Stereo Ch= 6/675; Nordmende, (ID = 61714) Radio

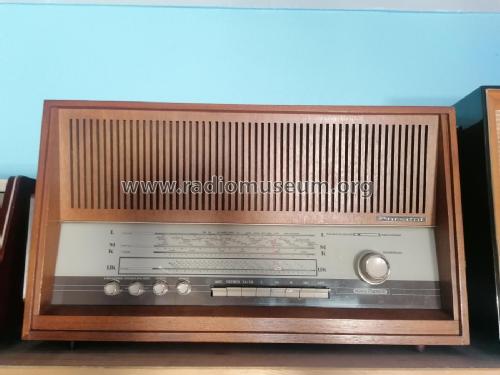

Nordmende,: Parsifal-Stereo Ch= 6/675 [Radio] ID = 61714 933x558
Select picture or schematic to display from thumbnails on the right and click for download.
For model Parsifal-Stereo Ch= 6/675, Nordmende, Norddeutsche Mende-Rundfunk GmbH (Sterling), Bremen-Hemelingen

Country:  Germany
Manufacturer / Brand:  Nordmende, Norddeutsche Mende-Rundfunk GmbH (Sterling), Bremen-Hemelingen
Year: 1965/1966 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 7: ECC85 ECH81 EAF801 ECC808 EMM803 ECC81 ELL80
Main principle Superheterodyne (common); ZF/IF 460 kHz; 2 AF stage(s)
Tuned circuits 6 AM circuit(s)     10 FM circuit(s)
Wave bands Broadcast, Long Wave, Short Wave plus FM or UHF.
Details
Power type and voltage Alternating Current supply (AC) / 110/220 Volt
Loudspeaker 2 Loudspeakers
Power out
from Radiomuseum.org Model: Parsifal-Stereo Ch= 6/675 - Nordmende, Norddeutsche Mende-
Material Wooden case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 610 x 355 x 240 mm / 24 x 14 x 9.4 inch
Notes 14 Dioden BA110, OA81, 2xOA79, 10xOA81 / Stereodecoder organisch eingebaut. Schaltbare AFC
Net weight (2.2 lb = 1 kg) 10.8 kg / 23 lb 12.6 oz (23.789 lb)
External source of data erb

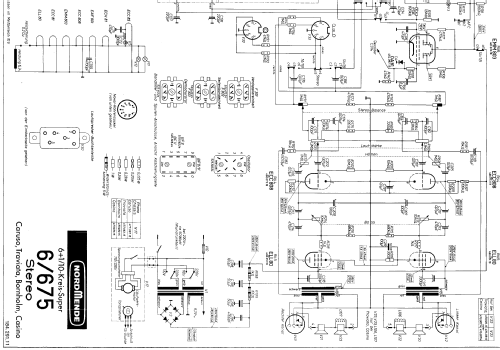

Literature/Schematics (1) -- Original-techn. papers.
