• Country
• Germany

• Manufacturer / Brand
• Nordmende, Norddeutsche Mende-Rundfunk GmbH (Sterling), Bremen-Hemelingen

• Year
• 1979 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 80730

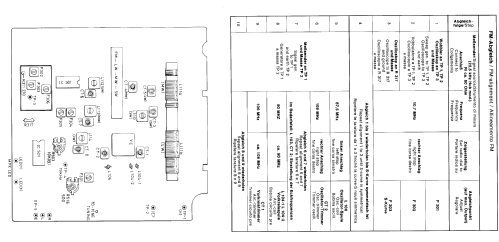

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 17

• Semiconductors

• Main principle
• Superheterodyne (common)

• Wave bands
• Broadcast, Long Wave, Short Wave plus FM or UHF.

• Power type and voltage
• Line / Batteries (any type) / 220/6x1,5 Volt

• Loudspeaker
• 4 Loudspeakers

• Power out
• 10 W (unknown quality)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: Partycorder Stereo 3084 0.155H - Nordmende, Norddeutsche Mende-

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 490 x 248 x 86 mm / 19.3 x 9.8 x 3.4 inch

• Notes
• 3 IC's . 2 x 4 W Sinusleistung. 2 eingebaute Mikrofone und Lautstärkeregler.

• Net weight (2.2 lb = 1 kg)
• 3.7 kg / 8 lb 2.4 oz (8.15 lb)

• Source of data

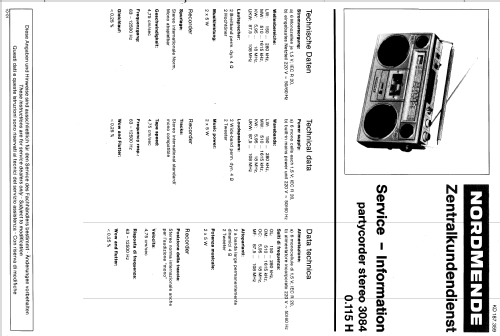

• -- Original-techn. papers.

• Author
• Model page created by Daniel Doll. See "Data change" for further contributors.
