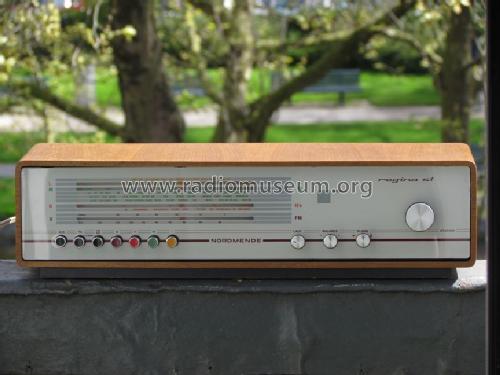

Nordmende,: Regina ST 970.135A Ch= 769.138A [Radio] ID = 1827746 864x648
Select picture or schematic to display from thumbnails on the right and click for download.
For model Regina ST 970.135A Ch= 769.138A, Nordmende, Norddeutsche Mende-Rundfunk GmbH (Sterling), Bremen-Hemelingen

Country:  Germany
Manufacturer / Brand:  Nordmende, Norddeutsche Mende-Rundfunk GmbH (Sterling), Bremen-Hemelingen
Year: 1969/1970 Category: Broadcast Receiver - or past WW2 Tuner

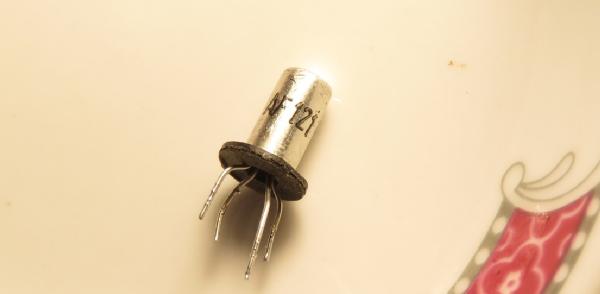

Semiconductors (the count is only for transistors) 24: AF106 AF135 AF125 AF121 AF137 BC149 BFY39II BFY39IV BFY40 AC117 AD161 AD162 AD150 AA112 AA118 AA119 SiG0,5/50R ZD16 Si-Br-Gl
Main principle Superheterodyne (common); ZF/IF 460/10700 kHz
Tuned circuits 7 AM circuit(s)     11 FM circuit(s)
Wave bands Broadcast, Long Wave, Short Wave plus FM or UHF.
Details
Power type and voltage Alternating Current supply (AC) / 110; 220 Volt

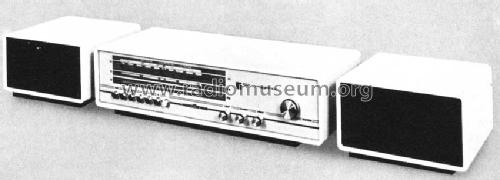

Loudspeaker - This model requires external speaker(s).
Power out 8 W (unknown quality)
from Radiomuseum.org Model: Regina ST 970.135A Ch= 769.138A - Nordmende, Norddeutsche Mende-
Material Wooden case
Shape Book-shelf unit.
Dimensions (WHD) 496 x 130 x 197 mm / 19.5 x 5.1 x 7.8 inch
Notes Halbleiter teils mehrfach vorhanden

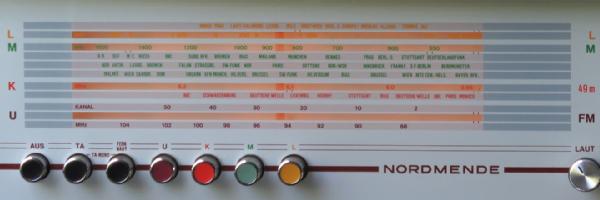

UKW: 87,5 - 104 MHz
KW: 5950 - 6200 kHz
MW: 515 - 1650 kHz
LW: 140 - 360 kHz

Vollstereo, NF-Verstärker mit zwei Endstufen je 4 W (Sinus).

Gehäusevarianten: weiss/Schleiflack mit rot abgesetzter Lautsprecherblende, weiss/Schleiflack, Nussbaum natur und Rio-Palisander mit anthrazitfarbig abgesetzter Lautsprecherblende
External source of data erb
Source of data Handbuch VDRG 1969/1970
Literature/Schematics (1) -- Original-techn. papers.
