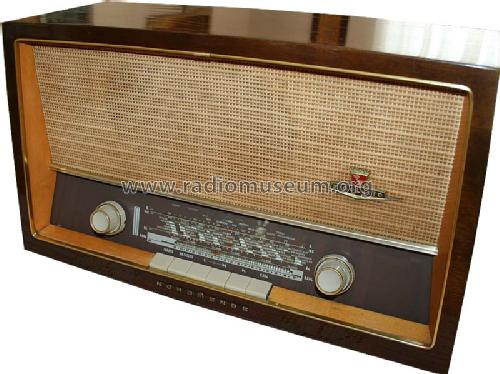

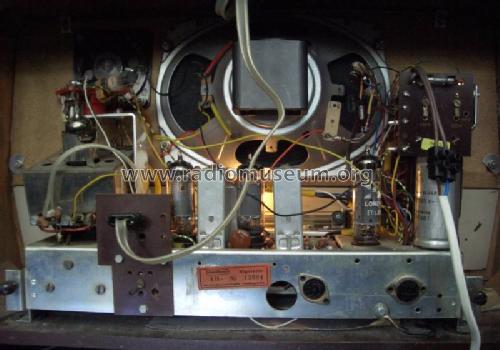

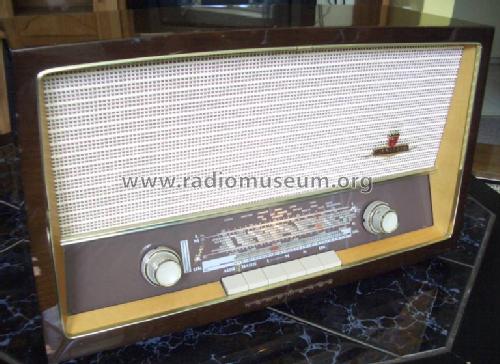

Rigoletto V15 Ch= 4/613

• Country
• Germany

• Manufacturer / Brand
• Nordmende, Norddeutsche Mende-Rundfunk GmbH (Sterling), Bremen-Hemelingen

• Year
• 1963/1964

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 24756

• Picture
• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• ECC85 ECH81 EBF89 ECL86 EM84

• Main principle
• Superheterodyne (common); ZF/IF 460/10700 kHz

• Tuned circuits
• 6 AM circuit(s)     10 FM circuit(s)

• Wave bands
• Broadcast, Long Wave, Short Wave plus FM or UHF.

• Power type and voltage
• Alternating Current supply (AC) / 110/220 Volt

• Loudspeaker
• 2 Loudspeakers

• Power out
• 2.5 W (undistorted)

• Material
• Wooden case

• from Radiomuseum.org
• Model: Rigoletto V15 Ch= 4/613 - Nordmende, Norddeutsche Mende-

• Shape
• Tablemodel with Push Buttons.

• Dimensions (WHD)
• 480 x 285 x 180 mm / 18.9 x 11.2 x 7.1 inch

• Notes
• Dioden: OA79.

• Net weight (2.2 lb = 1 kg)
• 6.1 kg / 13 lb 7 oz (13.436 lb)

• Price in first year of sale
• 306.00 DM

• External source of data
• Erb

• Source of data
• Handbuch VDRG 1963/1964
