• Year
  • 1964/1965
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 25681

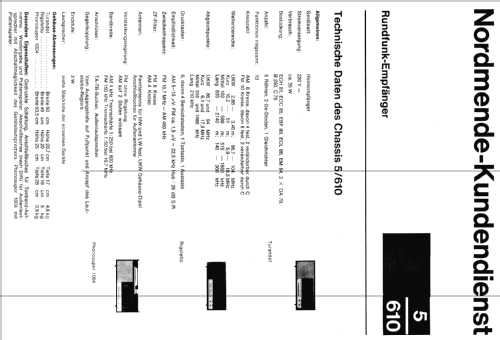

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 5
  • Main principle
  • Superheterodyne (common); ZF/IF 460/10700 kHz
  • Tuned circuits
  • 6 AM circuit(s)     10 FM circuit(s)
  • Wave bands
  • Broadcast, Long Wave, Short Wave plus FM or UHF.
  • Power type and voltage
  • Alternating Current supply (AC) / 220 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 16 cm = 6.3 inch
  • Power out
  • 3 W (unknown quality)
  • Material
  • Wooden case
  • from Radiomuseum.org

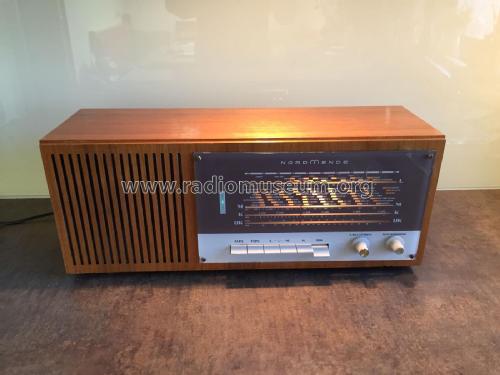

  • Model: Rigoletto F15 Ch= 5/610 - Nordmende, Norddeutsche Mende-
  • Shape
  • Tablemodel with Push Buttons.
  • Dimensions (WHD)
  • 490 x 200 x 160 mm / 19.3 x 7.9 x 6.3 inch
  • Notes
  •
  • Net weight (2.2 lb = 1 kg)
  • 6.8 kg / 14 lb 15.6 oz (14.978 lb)
  • Price in first year of sale
  • 385.00 DM
  • External source of data
  • Erb
  • Literature/Schematics (1)
  • -- Original-techn. papers.
