• Year
  • 1967/1968
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 87308

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 5
  • Main principle
  • Superheterodyne (common); ZF/IF 460/10700 kHz
  • Tuned circuits
  • 4 AM circuit(s)     6 FM circuit(s)
  • Wave bands
  • Broadcast, Long Wave, Short Wave plus FM or UHF.
  • Power type and voltage
  • Alternating Current supply (AC) / 110; 220 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
  • Power out
  • 3.5 W (unknown quality)
  • Material
  • Wooden case
  • from Radiomuseum.org

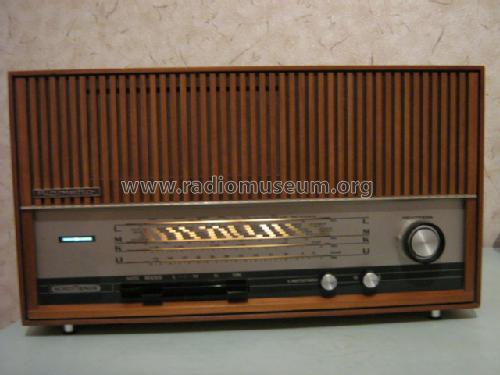

  • Model: Rigoletto A25A 968.125A Ch= 768.125A - Nordmende, Norddeutsche Mende-
  • Shape
  • Tablemodel with Push Buttons.
  • Dimensions (WHD)
  • 488 x 260 x 160 mm / 19.2 x 10.2 x 6.3 inch
  • Source of data
  • -- Original-techn. papers.
  • Literature/Schematics (1)

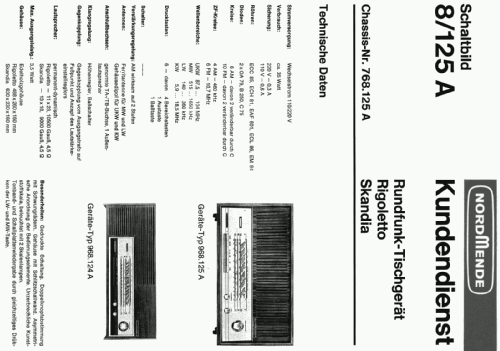

  • -- Original-techn. papers. (Schaltbild 8/125A)
  • Author
  • Model page created by Richard Winter. See "Data change" for further contributors.
