• Year
  • 1968/1969
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 166601

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Transistors
  • 13
  • Main principle
  • Superheterodyne (common); ZF/IF 460/10700 kHz
  • Tuned circuits
  • 7 AM circuit(s)     11 FM circuit(s)
  • Wave bands
  • Broadcast, Long Wave, Short Wave plus FM or UHF.
  • Power type and voltage
  • Alternating Current supply (AC) / 110/220 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
  • Power out
  • 7 W (unknown quality)
  • Material
  • Wooden case
  • from Radiomuseum.org

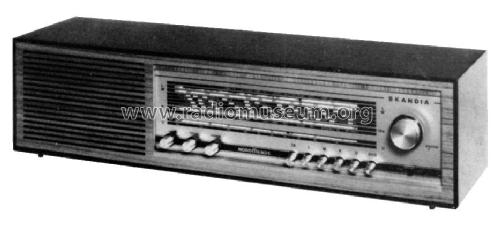

  • Model: Skandia 969.129A Ch= 9.129A - Nordmende, Norddeutsche Mende-
  • Shape
  • Tablemodel with Push Buttons.
  • Dimensions (WHD)
  • 597 x 161 x 167 mm / 23.5 x 6.3 x 6.6 inch
  • Notes
  • UKW: 87,5 - 104 MHz
    KW: 5950 - 6240 kHz
    MW: 515 - 1650 kHz
    LW: 140 - 360 kHz
  • Source of data
  • -- Original-techn. papers.

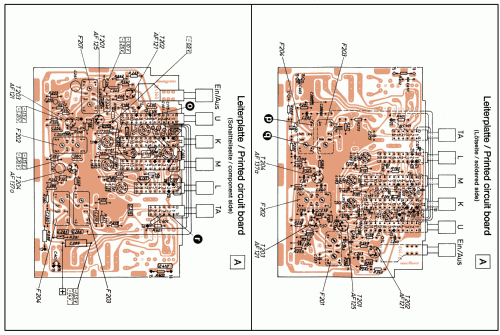

  • Literature/Schematics (1)
  • -- Original-techn. papers.
  • Author
  • Model page created by Thomas Günzel. See "Data change" for further contributors.
