• Year
  • 1973/1974
  • Category
  • Television Receiver (TV) or Monitor
  • Radiomuseum.org ID
  • 129484

 Technical Specifications

  • Number of Tubes
  • 1
  • Number of Transistors
  • 25
  • Semiconductors
  • Main principle
  • Superheterodyne (common)
  • Wave bands
  • Wave Bands given in the notes.
  • Power type and voltage
  • Line / Batteries (any type) / 220 / 12 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
  • Material
  • Plastics (no bakelite or catalin)
  • from Radiomuseum.org

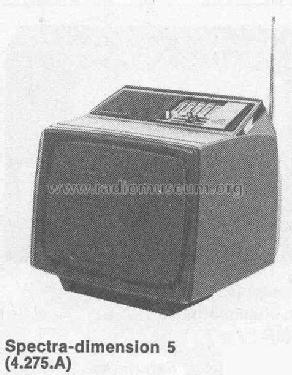

  • Model: Spectra-Dimension 5 4.275.A - Nordmende, Norddeutsche Mende-
  • Shape
  • Portable set > 8 inch (also usable without mains)
  • Dimensions (WHD)
  • 315 x 310 x 315 mm / 12.4 x 12.2 x 12.4 inch
  • Notes
  • 31 cm Portable, 6 ICs, 41 Dioden, VHF/UHF-Tuner, Teleskop-Antenne.
  • Net weight (2.2 lb = 1 kg)
  • 8.3 kg / 18 lb 4.5 oz (18.282 lb)
  • Price in first year of sale
  • 548.00 DM
  • Mentioned in
  • -- Original-techn. papers. (Weiler Angebot 1973/74)
  • Author
  • Model page created by Karlheinz Fischer. See "Data change" for further contributors.
