Spectra Portable Color 3600 F6/90; Nordmende, (ID = 358936) Television
Nordmende,: Spectra Portable Color 3600 F6/90 [Television] ID = 358936 933x681
Select picture or schematic to display from thumbnails on the right and click for download.
For model Spectra Portable Color 3600 F6/90, Nordmende, Norddeutsche Mende-Rundfunk GmbH (Sterling), Bremen-Hemelingen

Country:  Germany
Manufacturer / Brand:  Nordmende, Norddeutsche Mende-Rundfunk GmbH (Sterling), Bremen-Hemelingen
Year: 1976 ?? Category: Television Receiver (TV) or Monitor
Valves / Tubes 1: 370DLB22-TC01
Semiconductors (the count is only for transistors) Semiconductors present.
Main principle Superheterodyne (common)
Wave bands VHF incl. FM and/or UHF (see notes for details)
Details

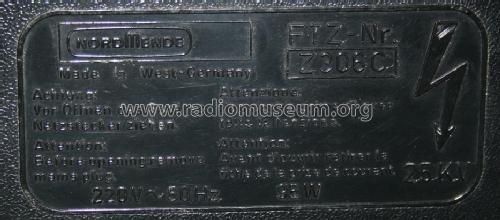

Power type and voltage Alternating Current supply (AC) / 220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 10 cm = 3.9 inch
Power out 3.5 W (unknown quality)
from Radiomuseum.org Model: Spectra Portable Color 3600 F6/90 - Nordmende, Norddeutsche Mende-
Material Plastics (no bakelite or catalin)
Shape Tablemodel, with any shape - general.
Dimensions (WHD) 500 x 340 x 370 mm / 19.7 x 13.4 x 14.6 inch
Notes

Nordmende 36cm Farb-Portable Modell Spectra-Color-Portable 3600.
Softline-Design

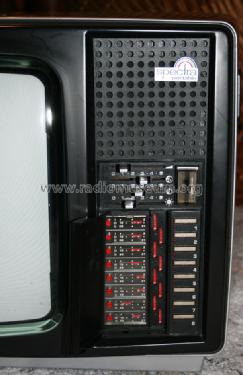

Programmwahl durch 8 Selectronic-Berührungsfelder.

Tragbarer Farbfernsehempfänger mit versenkbarer Teleskopantenne und nachrüstbarem 12/24-V-Anschluss.

Net weight (2.2 lb = 1 kg) 14.5 kg / 31 lb 15 oz (31.938 lb)
Price in first year of sale 927.00 DM
Source of data - - Data from my own collection

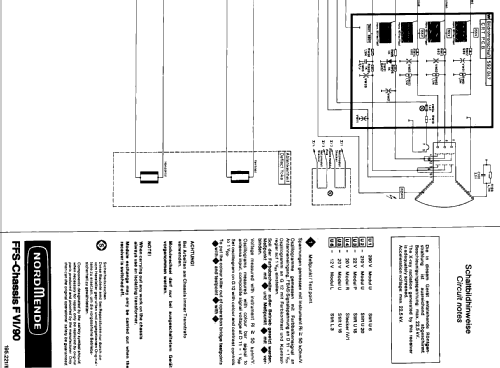

Literature/Schematics (1) -- Original-techn. papers.

Model page created by Michael Schlör. See "Data change" for further contributors.
