- Country
- Germany
- Manufacturer / Brand
- Nordmende, Norddeutsche Mende-Rundfunk GmbH (Sterling), Bremen-Hemelingen
- Year
- 1976/1977
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 131376
Ansicht des Netzteiles
Stereo-Decoder IC
Ansicht des Vor- und Endverstärkers
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Transistors
- 25
- Semiconductors
- Main principle
- Superheterodyne (common)
- Tuned circuits
- 6 AM circuit(s) 8 FM circuit(s)
- Wave bands
- Broadcast, Long Wave, Short Wave plus FM or UHF.
- Details
- Other Combination - see Notes
- Power type and voltage
- Alternating Current supply (AC) / 220 Volt
- Loudspeaker
- - This model requires external speaker(s).
- from Radiomuseum.org
- Model: Stereo 6005SCP - Nordmende, Norddeutsche Mende-
- Shape
- Tablemodel with Push Buttons.
- Dimensions (WHD)
- 700 x 195 x 375 mm / 27.6 x 7.7 x 14.8 inch
- Notes
- ICs: 1.

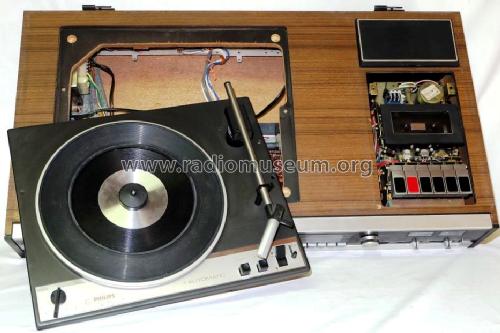

Stereo-Steuergerät kombiniert mit Nordmende-Stereo-Recorder und HiFi-Plattenspieler Philips GC060S. Frequenzumfang des Recorders: 60-10000 Hz; Stereo-Mikrofon gehört zum Lieferumfang; NF-Verstärker mit 2 Endstufen je 15 W; wahlweise mit zwei Lautsprechern lieferbar.
- Net weight (2.2 lb = 1 kg)
- 11.5 kg / 25 lb 5.3 oz (25.33 lb)
- Source of data
- Handbuch VDRG 1976/1977
- Author
- Model page created by Bernd P. Kieck. See "Data change" for further contributors.
