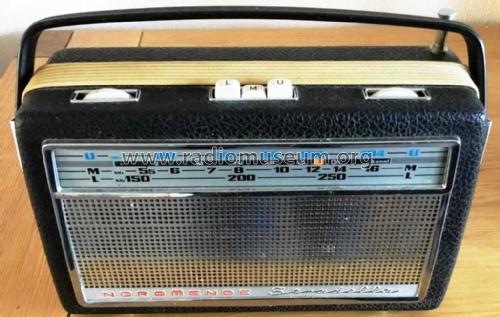

Stradella F09 Ch= 5/609; Nordmende, (ID = 4730) Radio
Nordmende,: Stradella F09 Ch= 5/609 [Radio] ID = 4730 770x577
Select picture or schematic to display from thumbnails on the right and click for download.
For model Stradella F09 Ch= 5/609, Nordmende, Norddeutsche Mende-Rundfunk GmbH (Sterling), Bremen-Hemelingen

Country:  Germany
Manufacturer / Brand:  Nordmende, Norddeutsche Mende-Rundfunk GmbH (Sterling), Bremen-Hemelingen
Year: 1965/1966 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 9: AF106 AF135 AF138 AF138 AF136 AC162 AC162 AC152 AC152 AA112 AA112 AA112
Main principle Superheterodyne (common); ZF/IF 460/10700 kHz
Tuned circuits 5 AM circuit(s)     10 FM circuit(s)
Wave bands Broadcast, Long Wave and FM or UHF.
Details
Power type and voltage Dry Batteries / 2 × 4,5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 10 cm = 3.9 inch
Power out 0.5 W (unknown quality)
from Radiomuseum.org Model: Stradella F09 Ch= 5/609 - Nordmende, Norddeutsche Mende-
Material Leather / canvas / plastic - over other material
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 237 x 144 x 70 mm / 9.3 x 5.7 x 2.8 inch
Notes UKW: 87 - 104 MHz
MW: 515 - 1620 kHz
LW: 145 - 260 kHz
Net weight (2.2 lb = 1 kg) 1.5 kg / 3 lb 4.9 oz (3.304 lb)
Source of data Handbuch VDRG 1965/1966 / Radiokatalog Band 1, Ernst Erb
Literature/Schematics (1) -- Original-techn. papers.
