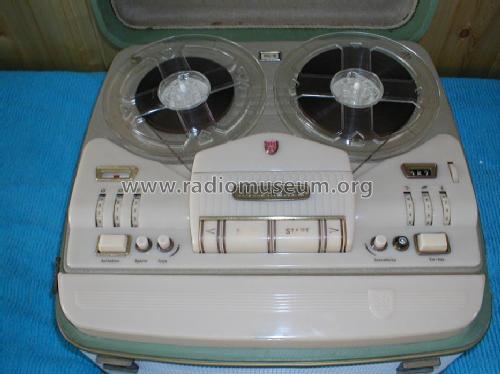

Titan ; Nordmende, (ID = 30483) R-Player
Nordmende,: Titan [R-Player] ID = 30483 933x699
Select picture or schematic to display from thumbnails on the right and click for download.

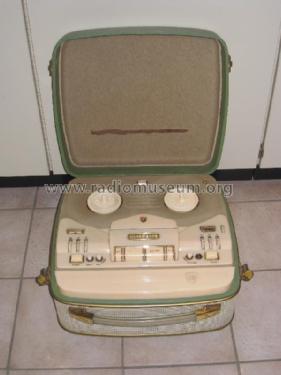

For model Titan Koffer, Nordmende, Norddeutsche Mende-Rundfunk GmbH (Sterling), Bremen-Hemelingen:
This model 3D has two static speakers (left and right side) and also one dinamic speaker (front side)

Country:  Germany
Manufacturer / Brand:  Nordmende, Norddeutsche Mende-Rundfunk GmbH (Sterling), Bremen-Hemelingen
Year: 1958–1960 Category: Sound/Video Recorder and/or Player
Valves / Tubes 5: EF86 ECC81 ECC81 ECL82 EM840
Main principle Audio-Amplification
Wave bands - without
Details Tape Recorder
Power type and voltage Alternating Current supply (AC) / 110; 125; 150; 220; 240 Volt
Loudspeaker 3 Loudspeakers
Power out 3 W (unknown quality)
from Radiomuseum.org Model: Titan [Koffer] - Nordmende, Norddeutsche Mende-
Material Leather / canvas / plastic - over other material
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 420 x 205 x 385 mm / 16.5 x 8.1 x 15.2 inch
Notes Zweispur; 9,5/19 cm/s. Spulen-Ø 18 cm.
Net weight (2.2 lb = 1 kg) 15 kg / 33 lb 0.6 oz (33.04 lb)
Price in first year of sale 739.00 DM
External source of data Erb
Source of data HdB d.Rdf-& Ferns-GrH 1959/60
