• Year
  • 1965/1966
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 7686

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Transistors
  • 9
  • Main principle
  • Superheterodyne (common); ZF/IF 460/10700 kHz
  • Tuned circuits
  • 6 AM circuit(s)     10 FM circuit(s)
  • Wave bands
  • Broadcast, Short Wave plus FM or UHF.
  • Power type and voltage
  • Dry Batteries / 5 × 1,5 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 10 cm = 3.9 inch
  • Power out
  • 1 W (unknown quality)
  • Material
  • Leather / canvas / plastic - over other material
  • from Radiomuseum.org

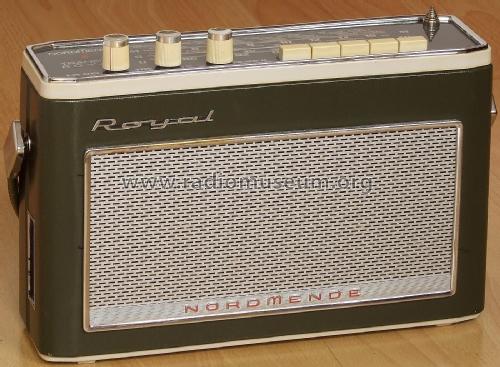

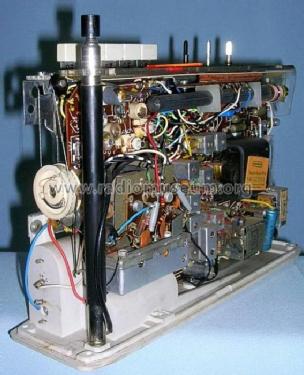

  • Model: Transita-Royal 49m F081 Ch= 4/608 49m - Nordmende, Norddeutsche Mende-
  • Shape
  • Portable set > 8 inch (also usable without mains)
  • Dimensions (WHD)
  • 270 x 170 x 77 mm / 10.6 x 6.7 x 3 inch
  • Notes
  • Betrieb im Auto über Autohalterung aus 6-V- oder 12-V-Autobatterie möglich. Netzbetrieb mit zusätzlichem Netzteil möglich.

    3 Ausführungen: bordeauxrot, deltagrün bzw. farn, kaviar.

  • Net weight (2.2 lb = 1 kg)
  • 2.2 kg / 4 lb 13.5 oz (4.846 lb)
  • Literature/Schematics (1)
  • -- Original-techn. papers.
  • Picture reference
  • Das Modell ist im «Radiokatalog» (Erb) abgebildet.
