• Country
• Germany

• Manufacturer / Brand
• Nordmende, Norddeutsche Mende-Rundfunk GmbH (Sterling), Bremen-Hemelingen

• Year
• 1964/1965

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 230263

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 9

• Semiconductors
• AF106 AF125 AF126 AF126 AF137 AC162 AC162 AC153 AC153 AA112 AA118 BA111

• Main principle
• Superheterodyne (common); ZF/IF 460/10700 kHz

• Tuned circuits
• 6 AM circuit(s)     10 FM circuit(s)

• Wave bands
• Broadcast, Short Wave plus FM or UHF.

• Power type and voltage
• Dry Batteries / 5 × 1,5 Volt Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Power out
• 1 W (unknown quality)

• Material
• Leather / canvas / plastic - over other material

• from Radiomuseum.org

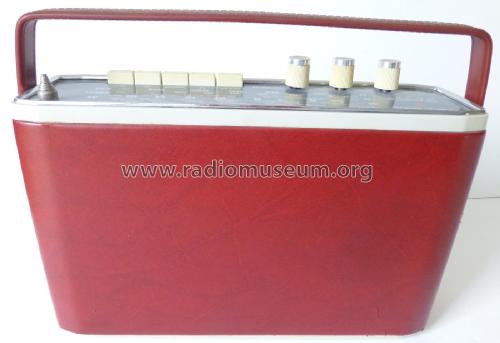

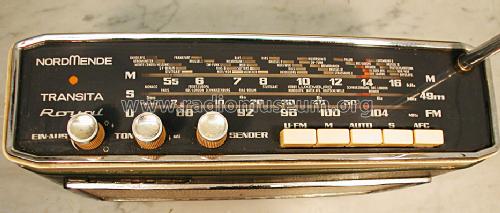

• Model: Transita-Royal 49m V081 Ch= 4/608 49m - Nordmende, Norddeutsche Mende-

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 270 x 170 x 77 mm / 10.6 x 6.7 x 3 inch

• Notes

• Betrieb im Auto über Autohalterung aus 6-V- oder 12-V-Autobatterie möglich. Netzbetrieb mit zusätzlichem Netzteil möglich.

  3 Ausführungen: bordeauxrot, deltagrün bzw. farn, kaviar.

• Net weight (2.2 lb = 1 kg)
• 2.2 kg / 4 lb 13.5 oz (4.846 lb)

• Author
• Model page created by Jörg Holtzapfel. See "Data change" for further contributors.
