• Country
• Germany

• Manufacturer / Brand
• Nordmende, Norddeutsche Mende-Rundfunk GmbH (Sterling), Bremen-Hemelingen

• Year
• 1983/1984

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 156923

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• Semiconductors present.

• Semiconductors
• BF414 BF255 BF240 BF199 BF245 BC547 BC548 BC550 BC560 CA3089 LM324 MC1310 TDA1072 1N4148 1SV68 BA223 BB222 BZ102

• Main principle
• Superheterodyne (common); ZF/IF 455/10700 kHz

• Wave bands
• Broadcast, Long Wave and FM or UHF.

• Power type and voltage
• Powered by external power supply or a main unit. / 20 Volt

• Loudspeaker
• - For headphones or amp.

• Material
• Metal case

• from Radiomuseum.org

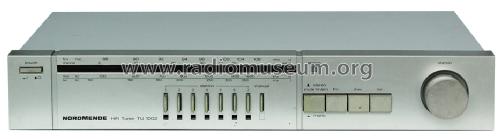

• Model: TU 1002 984.150H - Nordmende, Norddeutsche Mende-

• Shape
• Book-shelf unit.

• Dimensions (WHD)
• 440 x 77 x 248 mm / 17.3 x 3 x 9.8 inch

• Notes
• UKW: 87,5 - 108 MHz
  MW: 510 - 1630 kHz
  LW: 145 - 355 kHz

  Hifi-Tuner mit Analogabstimmung, manuell oder 7 Fixtasten, Mute/Mono-Taste, Stereo-Anzeige über LED, gekapselte Ferritstabantenne an der Rückseite, Koaxeingang 75Ohm, die Spannungsversorgung (20Volt/180mA) erfolgt aus dem Hauptapparat, NF-Ausgang über Chinchkabel.

• Net weight (2.2 lb = 1 kg)
• 2.570 kg / 5 lb 10.6 oz (5.661 lb)

• Source of data
• -- Original-techn. papers.

• Author
• Model page created by Museum Roggenhofer. See "Data change" for further contributors.
