UHF-Wobbler UHW 353/2

UHF-Wobbler UHW 353/2; Nordmende, (ID = 1517182) Equipment
UHF-Wobbler UHW 353/2; Nordmende, (ID = 1516322) Equipment UHF-Wobbler UHW 353/2; Nordmende, (ID = 1516350) Equipment

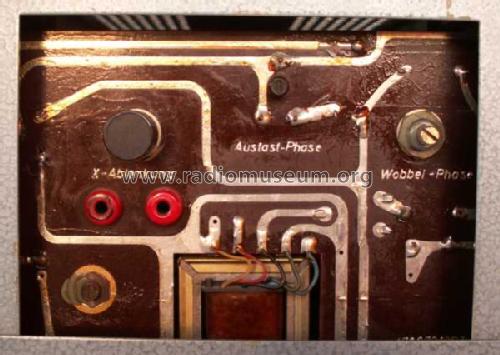

UHF-Wobbler UHW 353/2; Nordmende, (ID = 1516351) Equipment UHF-Wobbler UHW 353/2; Nordmende, (ID = 1516354) Equipment
UHF-Wobbler UHW 353/2; Nordmende, (ID = 1517608) Equipment
Use red slider bar for more.
UHF-Wobbler UHW 353/2; Nordmende, (ID = 1516322) Equipment
Nordmende,: UHF-Wobbler UHW 353/2 [Equipment] ID = 1516322 900x1191
Select picture or schematic to display from thumbnails on the right and click for download.
For model UHF-Wobbler UHW 353/2, Nordmende, Norddeutsche Mende-Rundfunk GmbH (Sterling), Bremen-Hemelingen

Country:  Germany
Manufacturer / Brand:  Nordmende, Norddeutsche Mende-Rundfunk GmbH (Sterling), Bremen-Hemelingen
Year: 1968 ? Category: Service- or Lab Equipment
Valves / Tubes 2: EC8010 EM87
Semiconductors (the count is only for transistors) 6: 40318 BFY39 2N3702 BFY39 2N3702 BFY39 GD73E/4 GD73E/4 OA161 OA161
Wave bands Wave Bands given in the notes.
Details
Power type and voltage Alternating Current supply (AC) / 110; 130; 150; 220; 240 Volt
Loudspeaker - - No sound reproduction output.
Power out
from Radiomuseum.org Model: UHF-Wobbler UHW 353/2 - Nordmende, Norddeutsche Mende-
Material Metal case
Shape Tablemodel, high profile (upright - NOT Cathedral nor decorative).
Dimensions (WHD) 196 x 262 x 360 mm / 7.7 x 10.3 x 14.2 inch
Notes

Normende UHW 353/2 UHF-Wobbler

Wobbler 450 bis 900 MHz
- Frequenzunsicherheit +- 3%
- Ausgangsspannung ca. 0,5V an 60 Ohm, variabel
- Abschwächer > 80 dB einstellbar
- Wobbelfrequenz 50Hz Sinusförmig
- Wobbelhub 0Hz bis 50MHz
- UHF-Ausgangsspannung Transistor stabilisiert

Markengeber 460 bis 870 MHz
- kontinuierlich durchstimmbar Kreisskala mit 1MHz Teilung
- Frequenzunsicherheit +- 0,1%

Sonstiges
- Ausgang Ablenkspannung für Oszilloskop

Siehe auch Modell UHW 353.



Net weight (2.2 lb = 1 kg) 11 kg / 24 lb 3.7 oz (24.229 lb)
Mentioned in Schaltbild zu UHW 353/2
Literature/Schematics (1) - - Manufacturers Literature

Model page created by Walter Fackler. See "Data change" for further contributors.
