• Country
• United States of America (USA)

• Manufacturer / Brand
• Norelco, North American Philips Co. Inc.; Dobbs Ferry and New York, NY

• Year
• 1959 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 139323

• • Brand: Norelco

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 7

• Semiconductors
• OC170 OC45 OC45 OC75 OC75 OC72 OC72

• Main principle
• Superheterodyne (common); ZF/IF 452 kHz

• Wave bands
• Broadcast plus more than 2 Short Wave bands.

• Power type and voltage
• Dry Batteries / D: 6 x 1.5 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 5 inch = 12.7 cm

• Material
• Leather / canvas / plastic - over other material

• from Radiomuseum.org

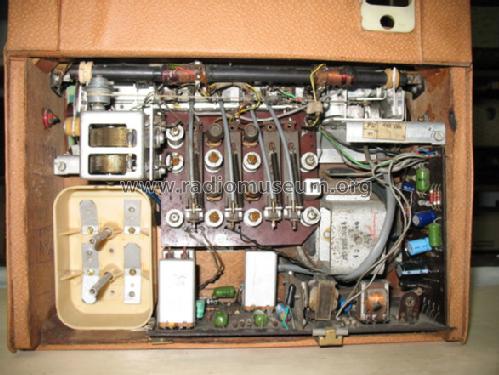

• Model: L4X95T - Norelco, North American

• Shape
• Portable set > 8 inch (also usable without mains)

• Mentioned in
• Collector's Guide To TrR1 Bunis trans.94 (1996, page 183)

• Literature/Schematics (1)
• Photofact Folder, Howard W. SAMS (Set 507 folder 12 date 11-60)

• Literature/Schematics (2)
• Photofact TSM Transistor Radio Series SAMS (TSM 11, April 1962, pages 91 - 98)

• Author
• Model page created by Peter Hoddow. See "Data change" for further contributors.
