Demodulator 104

Northern Radio Co.; New York

Data

Forum

Pictures

Collections

Country
United States of America (USA)

Manufacturer / Brand
Northern Radio Co.; New York

Year
1951

Category
Miscellaneous (Other, Various) - see notes

Radiomuseum.org ID
119246

Schematics

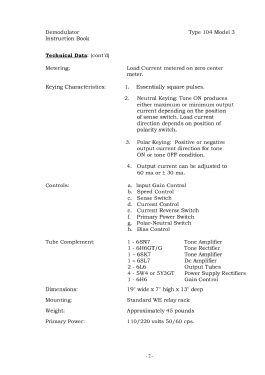

Demodulator 104; Northern Radio Co.; (ID = 3012949) Misc — Northern Radio Co.; Demodulator 104 (3)

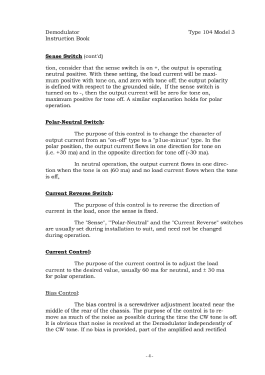

Demodulator 104; Northern Radio Co.; (ID = 3012950) Misc — Northern Radio Co.; Demodulator 104 (3)

Demodulator 104; Northern Radio Co.; (ID = 3012951) Misc — Northern Radio Co.; Demodulator 104 (3)

Demodulator 104; Northern Radio Co.; (ID = 3012952) Misc — Northern Radio Co.; Demodulator 104 (3)

Demodulator 104; Northern Radio Co.; (ID = 3012953) Misc — Northern Radio Co.; Demodulator 104 (3)

Demodulator 104; Northern Radio Co.; (ID = 3012954) Misc — Northern Radio Co.; Demodulator 104 (3)

Demodulator 104; Northern Radio Co.; (ID = 3012955) Misc — Northern Radio Co.; Demodulator 104 (3)

Demodulator 104; Northern Radio Co.; (ID = 3012956) Misc — Northern Radio Co.; Demodulator 104 (3)

Demodulator 104; Northern Radio Co.; (ID = 3012957) Misc — Northern Radio Co.; Demodulator 104 (3)

Demodulator 104; Northern Radio Co.; (ID = 3012958) Misc — Northern Radio Co.; Demodulator 104 (3)

Demodulator 104; Northern Radio Co.; (ID = 3012959) Misc — Northern Radio Co.; Demodulator 104 (3)

Demodulator 104; Northern Radio Co.; (ID = 3012960) Misc — Northern Radio Co.; Demodulator 104 (3)

Demodulator 104; Northern Radio Co.; (ID = 3012961) Misc — Northern Radio Co.; Demodulator 104 (3)

Demodulator 104; Northern Radio Co.; (ID = 3012962) Misc — Northern Radio Co.; Demodulator 104 (3)

Demodulator 104; Northern Radio Co.; (ID = 3012963) Misc — Northern Radio Co.; Demodulator 104 (3)

Demodulator 104; Northern Radio Co.; (ID = 3012964) Misc — Northern Radio Co.; Demodulator 104 (3)

Demodulator 104; Northern Radio Co.; (ID = 3012965) Misc — Northern Radio Co.; Demodulator 104 (3)

Demodulator 104; Northern Radio Co.; (ID = 3012966) Misc — Northern Radio Co.; Demodulator 104 (3)

Demodulator 104; Northern Radio Co.; (ID = 3012967) Misc — Northern Radio Co.; Demodulator 104 (3)

Demodulator 104; Northern Radio Co.; (ID = 3012968) Misc — Northern Radio Co.; Demodulator 104 (3)

Click on the schematic thumbnail to request the schematic as a free document.

Technical Specifications

Number of Tubes
11

Valves / Tubes
6SN7 6H6GT 6SK7 6SL7GT 6L6 6L6 5W4 or 5Y3GT 6H6

Wave bands
- without

Power type and voltage
Alternating Current supply (AC) / 110; 220 Volt

Material
Metal case

from Radiomuseum.org
Model: Demodulator 104 - Northern Radio Co.; New York

Shape
Chassis only or for «building in»

Dimensions (WHD)
19 x 7 x 13 inch / 483 x 178 x 330 mm

Notes
Used in communication systems wherein the intelligence is transmitted to a remote location by means of amplitude modulated tones. It is generally connected to the output of a line amplifier, and its output is capable of operating a teleprinter, tape recorder or any device requiring DC pulses; speed up to 600 words per minute, output tubes equipped four times.
