• Year
  • 1940
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 154995

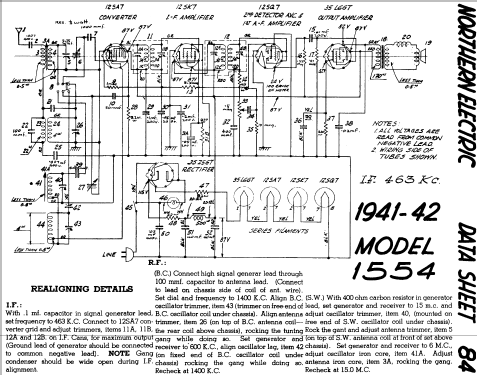

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 5
  • Main principle
  • Superheterodyne (common); ZF/IF 463 kHz
  • Tuned circuits
  • 6 AM circuit(s)
  • Wave bands
  • Broadcast and Short Wave (SW).
  • Power type and voltage
  • AC/DC-set / 110 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 6 inch = 15.2 cm
  • Power out
  • 2 W (unknown quality)
  • Material
  • Leather / canvas / plastic - over other material
  • from Radiomuseum.org
  • Model: 1554 - Northern Electric Co. Ltd.;
  • Shape
  • Tablemodel without push buttons, Mantel/Midget/Compact up to 14
  • Dimensions (WHD)
  • 10 x 7 x 6 inch / 254 x 178 x 152 mm
  • Notes
  • Small set with catalin handle and canvas case over wood construction, but not a portable since only mains operated.
  • Net weight (2.2 lb = 1 kg)
  • 3.632 kg / 8 lb 0 oz (8 lb)
  • Price in first year of sale
  • 37.00 CDN
  • Circuit diagram reference
  • Radio College of Canada
  • Author
  • Model page created by John Allen. See "Data change" for further contributors.
