- Country
- Canada
- Manufacturer / Brand
- Northern Electric Co. Ltd.; Montreal, QC ; Belleville, ON
- Year
- 1937/1938
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 174825
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 6
- Main principle
- Superheterodyne (common); ZF/IF 470 kHz
- Tuned circuits
- 7 AM circuit(s)
- Wave bands
- Broadcast plus 2 Short Wave bands.
- Power type and voltage
- Alternating Current supply (AC)
- Loudspeaker
- Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
- Material
- Wooden case
- from Radiomuseum.org

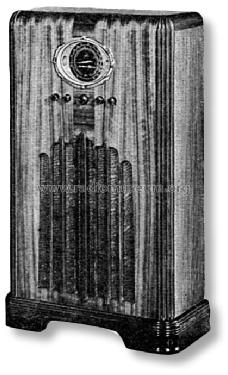

- Model: 621 - Northern Electric Co. Ltd.;
- Shape
- Console with any shape - in general
- Circuit diagram reference
- Radio College of Canada
- Mentioned in
- Pre-War Consoles
- Literature/Schematics (1)
- Northern Electric Page 43
- Author
- Model page created by Hans-Joachim Korn † 16.11.15. See "Data change" for further contributors.
