Guitar Amplifier R6B

Guitar Amplifier R6B; Northern Electric Co (ID = 1497511) Ampl/Mixer Guitar Amplifier R6B; Northern Electric Co (ID = 1497510) Ampl/Mixer

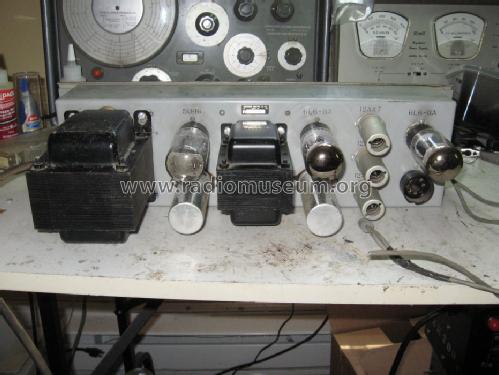

Guitar Amplifier R6B; Northern Electric Co (ID = 1497509) Ampl/Mixer Guitar Amplifier R6B; Northern Electric Co (ID = 1497512) Ampl/Mixer
Use red slider bar for more.
Guitar Amplifier R6B; Northern Electric Co (ID = 1497511) Ampl/Mixer
Northern Electric Co: Guitar Amplifier R6B [Ampl/Mixer] ID = 1497511 933x700
Select picture or schematic to display from thumbnails on the right and click for download.
For model Guitar Amplifier R6B, Northern Electric Co. Ltd.; Canada:
my own picture

Country:  Canada
Manufacturer / Brand:  Northern Electric Co. Ltd.; Canada
Year: 1960 ?? Category: Audio Amplifier or -mixer
Valves / Tubes 6: 12AX7 12AX7 12AX7 6L6G 6L6G 5U4G
Main principle Audio-Amplification
Wave bands - without
Details Guitar Amplifier
Power type and voltage Alternating Current supply (AC) / 115 Volt
Loudspeaker - This model requires external speaker(s).
Power out 25 W (unknown quality)
from Radiomuseum.org Model: Guitar Amplifier R6B - Northern Electric Co. Ltd.;
Material Metal case
Shape Tablemodel, with any shape - general.
Dimensions (WHD) 22 x 5 x 10 inch / 559 x 127 x 254 mm
Net weight (2.2 lb = 1 kg) 22 lb (22 lb 0 oz) / 9.988 kg

Model page created by Andy Prigge. See "Data change" for further contributors.



All listed radios etc. from Northern Electric Co. Ltd.; Canada
Here you find 279 models, 230 with images and 249 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
