• Year
  • 1956 ?
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 222022

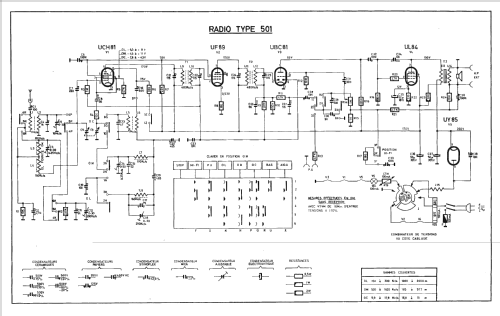

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 5
  • Main principle
  • Superheterodyne (common); ZF/IF 480 kHz; 2 AF stage(s)
  • Tuned circuits
  • 6 AM circuit(s)
  • Wave bands
  • Broadcast, Long Wave and Short Wave.
  • Power type and voltage
  • AC/DC-set / 110; 130; 220; 240 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
  • Power out
  • 3.2 W (unknown quality)
  • from Radiomuseum.org
  • Model: 501 - Novak also Pontiac; Bruxelles
  • Shape
  • Tablemodel with Push Buttons.
  • Notes
  • Novak model 501 is equipped with an oval, permanent magnetic loudspeaker (5 x 7").
  • Source of data
  • -- Original-techn. papers.
  • Author
  • Model page created by Gidi Verheijen. See "Data change" for further contributors.
