For model 702, Novak (also Pontiac); Bruxelles

Country:  Belgium
Manufacturer / Brand:  Novak (also Pontiac); Bruxelles
Year: 1961 ?? Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 7: SFT108 SFT107 SFT107 SFT152 SFT152 SFT122 SFT122 SFD106
Main principle Superheterodyne (common); ZF/IF 450 kHz; 3 AF stage(s)
Tuned circuits 8 AM circuit(s)
Wave bands Broadcast (MW) and Long Wave.
Details

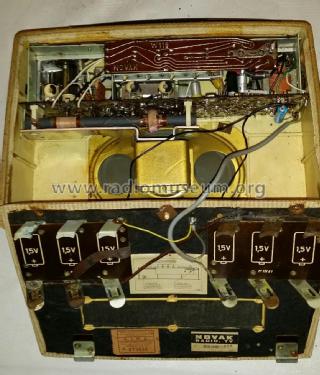

Power type and voltage Dry Batteries / 6 x 1,5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out 0.68 W (unknown quality)
from Radiomuseum.org Model: 702 - Novak also Pontiac; Bruxelles
Material Moulded (Bakelite or Plastics)
Shape Portable set > 8 inch (also usable without mains)
Price in first year of sale 2'650.00 BFr
Source of data -- Original-techn. papers.

Model page created by Dirk Bladt. See "Data change" for further contributors.
