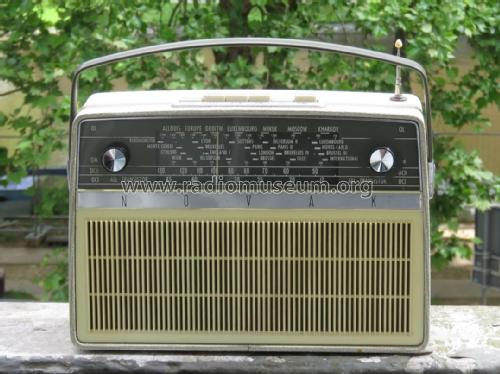

Atlantic 701

Atlantic 701; Novak also Pontiac; (ID = 880736) Radio

Atlantic 701; Novak also Pontiac; (ID = 880737) Radio

Atlantic 701; Novak also Pontiac; (ID = 880738) Radio
Atlantic 701; Novak also Pontiac; (ID = 1801957) Radio Atlantic 701; Novak also Pontiac; (ID = 847723) Radio
Atlantic 701; Novak also Pontiac; (ID = 957370) Radio Atlantic 701; Novak also Pontiac; (ID = 957371) Radio
Atlantic 701; Novak also Pontiac; (ID = 957372) Radio
Use red slider bar for more.
Atlantic 701; Novak also Pontiac; (ID = 1801957) Radio
Novak also Pontiac;: Atlantic 701 [Radio] ID = 1801957 933x780
Select picture or schematic to display from thumbnails on the right and click for download.
For model Atlantic 701, Novak (also Pontiac); Bruxelles

Country:  Belgium
Manufacturer / Brand:  Novak (also Pontiac); Bruxelles
Year: 1961 ?? Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 7: OC614 SFT103 SFT107 SFT152 SFT153 SFT123 SFT123
Main principle Superheterodyne (common)
Wave bands Broadcast, Long Wave and 2 x Short Wave.
Details
Power type and voltage Storage and/or dry batteries / 6 x 1,5 Volt

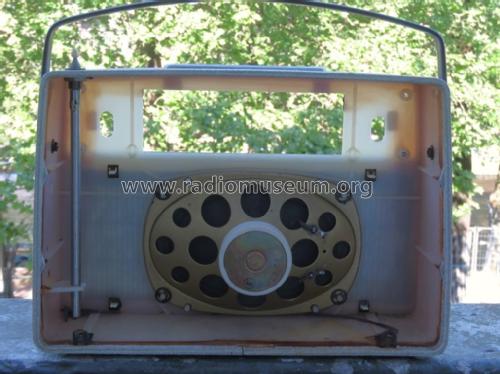

Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
Power out
from Radiomuseum.org Model: Atlantic 701 - Novak also Pontiac; Bruxelles
Material Leather / canvas / plastic - over other material
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 320 x 210 x 100 mm / 12.6 x 8.3 x 3.9 inch
Price in first year of sale 3'250.00 FB
Source of data - - Data from my own collection

Model page created by Jean-Paul Moriamé. See "Data change" for further contributors.



All listed radios etc. from Novak (also Pontiac); Bruxelles
Here you find 280 models, 193 with images and 147 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
