Master 593 AC supply
Use red slider bar for more.

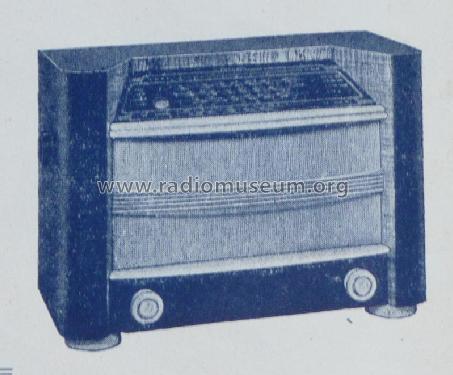

Novak also Pontiac;: Master 593 [Radio] ID = 838389 800x661
Select picture or schematic to display from thumbnails on the right and click for download.
|
|
||||
| Year: 1949 | Category: Broadcast Receiver - or past WW2 Tuner | ||||
| Valves / Tubes | 5: |
|---|
| Wave bands | Broadcast, Long Wave and Short Wave. |
|---|---|
| Details | |
| Power type and voltage | Alternating Current supply (AC) |
| Loudspeaker | Ø 6 inch = 15.2 cm |
| Power out | |
| from Radiomuseum.org | Model: Master 593 [AC supply] - Novak also Pontiac; Bruxelles |
| Material | Wooden case |
| Shape | Tablemodel, low profile (big size). |
| Dimensions (WHD) | 420 x 310 x 200 mm / 16.5 x 12.2 x 7.9 inch |
| Price in first year of sale | 4'950.00 BFr |
| Source of data | -- Original prospect or advert |
Model page created by Hugo Sneyers. See "Data change" for further contributors.
