Seven Seas

Novak (also Pontiac); Bruxelles

Data
Forum
Pictures
Collections

  • Year
  • 1965 ??
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 193747

 Technical Specifications

  • Number of Transistors
  • 8
  • Main principle
  • Superheterodyne (common)
  • Wave bands
  • Broadcast plus more than 2 Short Wave bands.
  • Power type and voltage
  • Dry Batteries / 3R12: 4 x 4,5 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
  • Material
  • Special material, described in the notes.
  • from Radiomuseum.org
  • Model: Seven Seas - Novak also Pontiac; Bruxelles
  • Shape
  • Portable set > 8 inch (also usable without mains)
  • Dimensions (WHD)
  • 290 x 180 x 80 mm / 11.4 x 7.1 x 3.1 inch
  • Notes

  • Plastikgrill, Plastik Skala-Platte (mit Aufdruck oben!),
    Gehäuse in einer Art Plastik-Segeltuch (weiss).

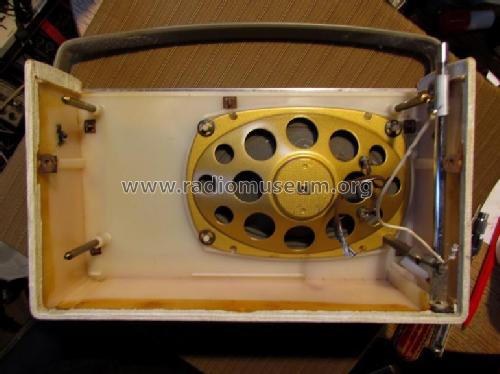

    Lautsprecher oval, 18 cm in der Breite, Magnet innen für flachere Ausführung.
    Vier Stück 4,5 Volt Batterien erzeugen zwei Arbeits-Spannungen von je 9 Volt

  • Author
  • Model page created by Bruce Cohen. See "Data change" for further contributors.
