For model Standard 35 Alternatif, Novak (also Pontiac); Bruxelles:

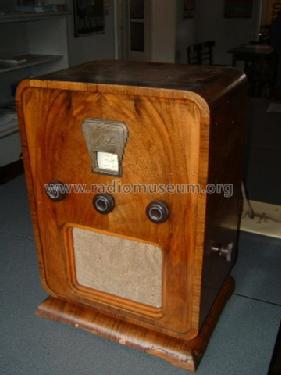

Picture taken in Olens Radiomuseum (ORM) in Belgium

Country:  Belgium
Manufacturer / Brand:  Novak (also Pontiac); Bruxelles
Year: 1935 ? Category: Broadcast Receiver - or past WW2 Tuner

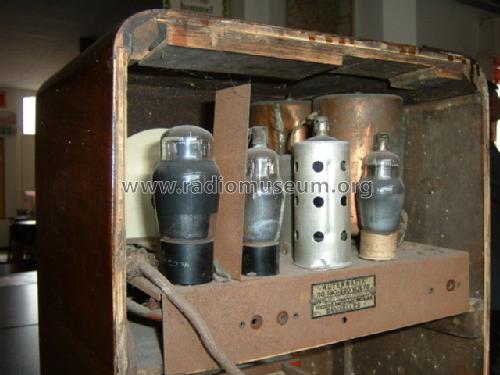

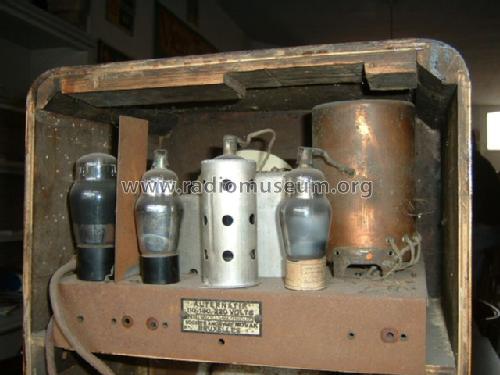

Valves / Tubes 5: 2A7 58 2A6 47 80
Main principle Superheterodyne (common); ZF/IF 104 kHz; 2 AF stage(s)
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast (MW) and Long Wave.
Details
Power type and voltage Alternating Current supply (AC) / 110; 130; 220 Volt

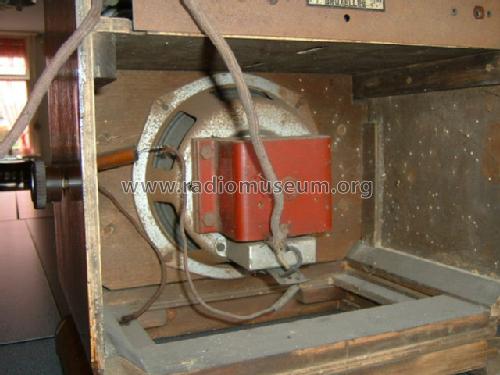

Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 20 cm = 7.9 inch
Power out
from Radiomuseum.org Model: Standard 35 Alternatif - Novak also Pontiac; Bruxelles
Material Wooden case

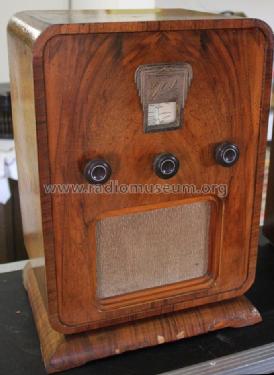

Shape Tablemodel, high profile (upright - NOT Cathedral nor decorative).
Dimensions (WHD) 335 x 480 x 265 mm / 13.2 x 18.9 x 10.4 inch
Notes

There is a model for AC/DC mains: Novak Standard 35 Alternatif Continu.

A schematic is available with model Standard A.

Price in first year of sale 1'950.00 BFR
External source of data Olens Radiomuseum, Belgium

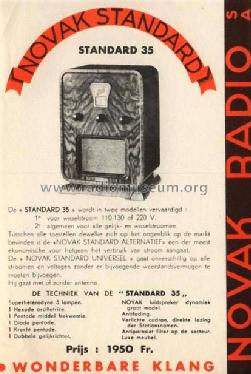

Mentioned in -- Original prospect or advert

Model page created by Georges Van Campenhout. See "Data change" for further contributors.
