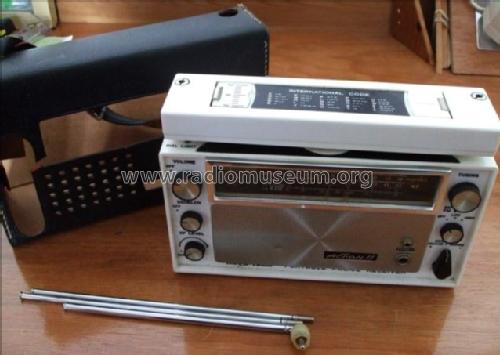

Action!! Direction Finder Portable Police Receiver

Action!! Direction Finder Portable Police Receiver ; Nova-Tech, Manhattan (ID = 2397319) Radio

Action!! Direction Finder Portable Police Receiver ; Nova-Tech, Manhattan (ID = 2397320) Radio
Action!! Direction Finder Portable Police Receiver ; Nova-Tech, Manhattan (ID = 1572800) Radio Action!! Direction Finder Portable Police Receiver ; Nova-Tech, Manhattan (ID = 1572801) Radio
Action!! Direction Finder Portable Police Receiver ; Nova-Tech, Manhattan (ID = 2397318) Radio
Use red slider bar for more.
Action!! Direction Finder Portable Police Receiver ; Nova-Tech, Manhattan (ID = 1572800) Radio
Nova-Tech, Manhattan: Action!! Direction Finder Portable Police Receiver [Radio] ID = 1572800 596x434
Select picture or schematic to display from thumbnails on the right and click for download.
For model Action!! Direction Finder Portable Police Receiver, Nova-Tech, Manhattan Beach, CA:
Action!! Portable Police Receiver. EBay December 2013 item 400619460517 seller dotdot999

Country:  United States of America (USA)
Manufacturer / Brand:  Nova-Tech, Manhattan Beach, CA
Year: 1965 ?? Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 14:
Main principle Super-Heterodyne (Super in general); ZF/IF 455/10700 kHz
Wave bands Wave Bands given in the notes.
Details
Power type and voltage Batteries / addl. power jack / 4 x 1.5 / ? Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: Action!! Direction Finder Portable Police Receiver - Nova-Tech, Manhattan Beach, CA
Material Modern plastics (no Bakelite or Catalin)
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 8 x 5 x 2.5 inch / 203 x 127 x 64 mm
Notes

Wavebands:  LW beacon 190 - 400 kHz, MW broadcast 550 - 1600 kHz, SW marine 1.6 - 4.5 MHz, VHF low 70 - 85 MHz, VHF high 150 - 175 MHz. AM/FM selectable independent of waveband by switch on side of radio.

Collectors' prices
Literature/Schematics (3) - - Manufacturers Literature

Model page created by Clive Forder. See "Data change" for further contributors.
