Nova Pal 3-Band Direction Finder RDF-410 (Japan 104)

Nova Pal 3-Band Direction Finder RDF-410 ; Nova-Tech, Manhattan (ID = 2024178) Radio
Nova Pal 3-Band Direction Finder RDF-410 ; Nova-Tech, Manhattan (ID = 438332) Radio Nova Pal 3-Band Direction Finder RDF-410 ; Nova-Tech, Manhattan (ID = 438533) Radio
Nova Pal 3-Band Direction Finder RDF-410 ; Nova-Tech, Manhattan (ID = 438529) Radio Nova Pal 3-Band Direction Finder RDF-410 ; Nova-Tech, Manhattan (ID = 578139) Radio
Nova Pal 3-Band Direction Finder RDF-410 ; Nova-Tech, Manhattan (ID = 578140) Radio Nova Pal 3-Band Direction Finder RDF-410 ; Nova-Tech, Manhattan (ID = 578141) Radio
Nova Pal 3-Band Direction Finder RDF-410 ; Nova-Tech, Manhattan (ID = 971023) Radio Nova Pal 3-Band Direction Finder RDF-410 ; Nova-Tech, Manhattan (ID = 971024) Radio
Nova Pal 3-Band Direction Finder RDF-410 ; Nova-Tech, Manhattan (ID = 971025) Radio Nova Pal 3-Band Direction Finder RDF-410 ; Nova-Tech, Manhattan (ID = 971026) Radio
Use red slider bar for more.
Nova Pal 3-Band Direction Finder RDF-410 ; Nova-Tech, Manhattan (ID = 438332) Radio
Nova-Tech, Manhattan: Nova Pal 3-Band Direction Finder RDF-410 [Radio] ID = 438332 873x700
Select picture or schematic to display from thumbnails on the right and click for download.
For model Nova Pal 3-Band Direction Finder RDF-410 (Japan 104), Nova-Tech, Manhattan Beach, CA:
pour J.C.Pigeon

Country:  United States of America (USA)
Manufacturer / Brand:  Nova-Tech, Manhattan Beach, CA
Year: 1971 ? Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 9: 2SA286 2SA160 2SA160 2SA155 2SA155 2SB111 2SB221 2SB221 2SB113
Main principle Superhet with RF-stage
Wave bands Broadcast, Long Wave and Short Wave.
Details
Power type and voltage Line / Batteries (any type) / 4x1,5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: Nova Pal 3-Band Direction Finder RDF-410 - Nova-Tech, Manhattan Beach, CA
Material Modern plastics (no Bakelite or Catalin)
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 220 x 150 x 70 mm / 8.7 x 5.9 x 2.8 inch
Notes

Direction finder; RF-stage; grey plastic, silver front. Successor of Nova-Pal.

Par rapport au Pilot Pal, modifications: Ajouts d'une entrée 6 V, sortie antenne extérieure et d'un éclairage de tableau - boitier plastique gris, façade métal argenté.

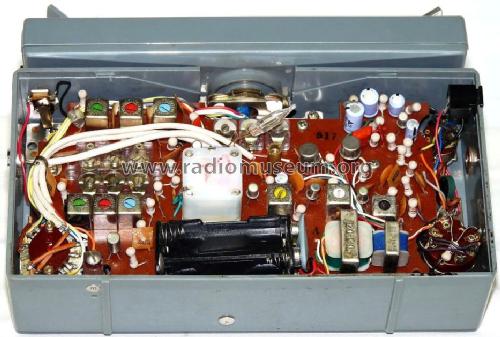

Spule für BFO ist mit auf die Ferritantenne gewickelt (siehe Bilder), BFO dient nur zum auffinden und hörbar machen unmodulierter Träger (Funkbaken), und ist nicht für SSB-Empfang geeignet.

Made in Japan 104

Net weight (2.2 lb = 1 kg) 1.1 kg / 2 lb 6.8 oz (2.423 lb)
Source of data - - Manufacturers Literature

Model page created by Jean Claude Pigeon † 2008. See "Data change" for further contributors.
