CR-254

CR-254; Novex Electronics Co (ID = 2366884) Radio CR-254; Novex Electronics Co (ID = 2366890) Radio
CR-254; Novex Electronics Co (ID = 2366888) Radio CR-254; Novex Electronics Co (ID = 2366895) Radio

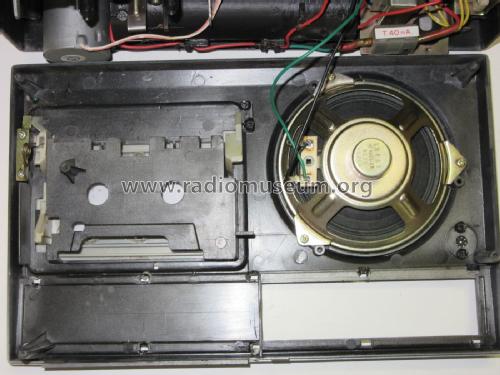

CR-254; Novex Electronics Co (ID = 2366882) Radio CR-254; Novex Electronics Co (ID = 2366886) Radio
CR-254; Novex Electronics Co (ID = 2366892) Radio CR-254; Novex Electronics Co (ID = 2366893) Radio

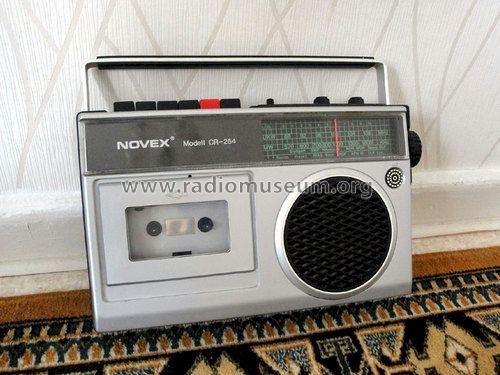

CR-254; Novex Electronics Co (ID = 1490864) Radio
Use red slider bar for more.

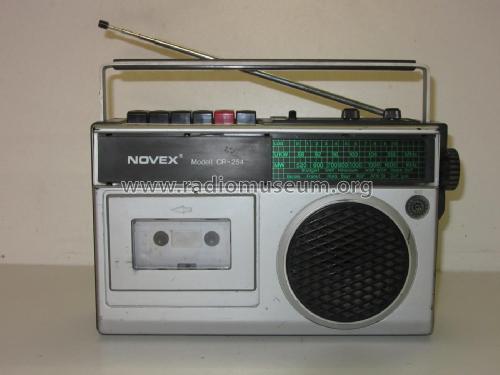

CR-254; Novex Electronics Co (ID = 2366884) Radio
Novex Electronics Co: CR-254 [Radio] ID = 2366884 1400x1050
Select picture or schematic to display from thumbnails on the right and click for download.
For model CR-254, Novex Electronics Co., Ltd. , Hongkong:
Frontscheibe und Zeiger fehlen

Country:  Hong Kong
Manufacturer / Brand:  Novex Electronics Co., Ltd. , Hongkong
Year: 1978 ?? Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) Semiconductors present.
Main principle Superheterodyne (common)
Wave bands Broadcast (BC) and FM or UHF.
Details Cassette-Recorder or -Player
Power type and voltage Line / Batteries (any type) / 220 / LR20: 4 x 1,5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 10 cm = 3.9 inch
Power out 1 W (unknown quality)
from Radiomuseum.org Model: CR-254 - Novex Electronics Co., Ltd. ,
Material Modern plastics (no Bakelite or Catalin)
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 300 x 230 x 93 mm / 11.8 x 9.1 x 3.7 inch
Notes

Einstellung oben: Lautst. und Tonblende; hinten: Monitor Ein/Aus.

Buchsen rechts: Mic (Klinke), Ear (Klinke), Ein-Ausgang über DIN-Buchse.

Net weight (2.2 lb = 1 kg) 1.950 kg / 4 lb 4.7 oz (4.295 lb)

Model page created by a member from A. See "Data change" for further contributors.



All listed radios etc. from Novex Electronics Co., Ltd. , Hongkong
Here you find 7 models, 7 with images and 1 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
