Signal Generator 88

Signal Generator 88; National Radio (ID = 1584285) Equipment
Signal Generator 88; National Radio (ID = 1195895) Equipment Signal Generator 88; National Radio (ID = 1584280) Equipment
Use red slider bar for more.
Signal Generator 88; National Radio (ID = 1195895) Equipment

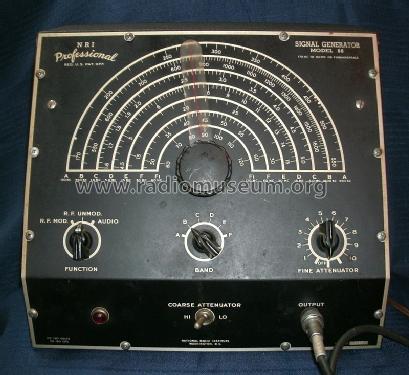

National Radio: Signal Generator 88 [Equipment] ID = 1195895 800x733
Select picture or schematic to display from thumbnails on the right and click for download.
For model Signal Generator 88, National Radio Institute (NRI); Washington, DC

Country:  United States of America (USA)
Manufacturer / Brand:  National Radio Institute (NRI); Washington, DC
Year: 1947 ? Category: Service- or Lab Equipment
Valves / Tubes 3: 6BE6 6SN7 5Y3
Wave bands Wave Bands given in the notes.
Details
Power type and voltage Alternating Current supply (AC) / 110 - 120 Volt
Loudspeaker - - No sound reproduction output.
Power out
from Radiomuseum.org Model: Signal Generator 88 - National Radio Institute NRI;
Material Metal case
Shape Tablemodel, slant panel.
Dimensions (WHD) 12 x 10.25 x 8.25 inch / 305 x 260 x 210 mm
Notes

Provides 170 kHz to 60 MHz on fundamentals (120 MHz harmonics) in six ranges, attenuator, internal 400 Hz, external or non modulation selectable.

Advertised in NRI National Radio News Oct-Nov 1948.

Net weight (2.2 lb = 1 kg) 14 lb (14 lb 0 oz) / 6.356 kg
Price in first year of sale 39.85 USD
Source of data -- Original-techn. papers.
