Six Transistor
Use red slider bar for more.
National Radio: Six Transistor [Radio] ID = 2521279 1400x1050
Select picture or schematic to display from thumbnails on the right and click for download.
|
|
||||
| Year: 1958 ?? | Category: Broadcast Receiver - or past WW2 Tuner | ||||
| Semiconductors (the count is only for transistors) | 6: |
|---|
| Main principle | Superheterodyne (common) |
|---|---|
| Wave bands | Broadcast only (MW). |
| Details | |
| Power type and voltage | Dry Batteries / AA: 4 x 1.5 Volt |
| Loudspeaker | Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) |
| Power out | |
| from Radiomuseum.org | Model: Six Transistor - National Radio Institute NRI; |

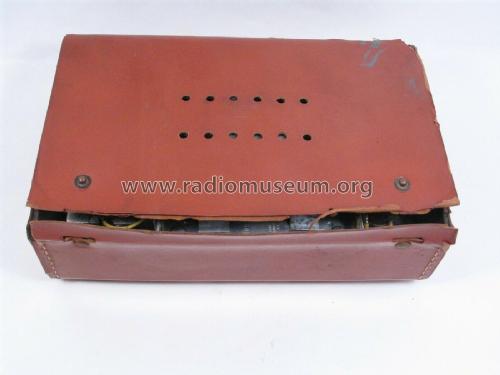

| Material | Leather / canvas / plastic - over other material |
| Shape | Portable set > 8 inch (also usable without mains) |
| Notes | Externally similar to the Three Transistor set. |
Model page created by Aldo Andreani. See "Data change" for further contributors.
