Albatros
Use red slider bar for more.
Océanic, ITT Océanic: Albatros [Radio] ID = 1428611 916x603
Select picture or schematic to display from thumbnails on the right and click for download.
|
|
||||
| Year: 1954 | Category: Broadcast Receiver - or past WW2 Tuner | ||||

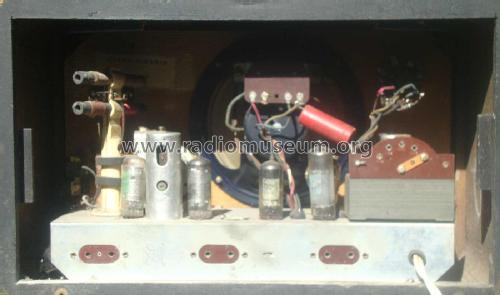

| Valves / Tubes | 6: 6AJ8 6BA6 6AV6 6AQ5 EM34 6Y4 |
|---|
| Main principle | Superheterodyne (common); ZF/IF 480 kHz |
|---|---|

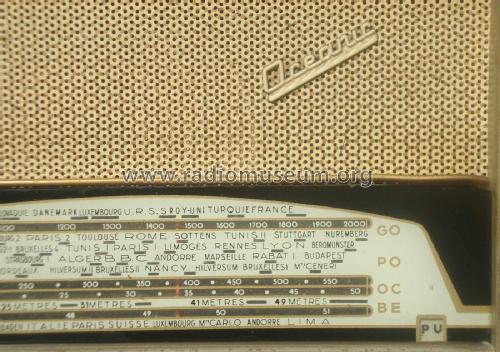

| Wave bands | Broadcast, Long Wave and 2 x Short Wave. |
| Details | |
| Power type and voltage | Alternating Current supply (AC) / 110-240 Volt |
| Loudspeaker | Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 17 cm = 6.7 inch |
| Power out | |
| from Radiomuseum.org | Model: Albatros - Océanic, ITT Océanic; Paris |
| Material | Wooden case |

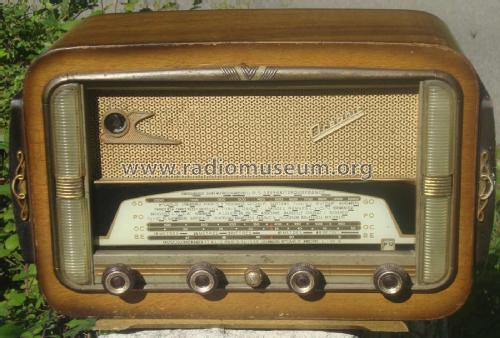

| Shape | Tablemodel, low profile (big size). |
| Dimensions (WHD) | 450 x 260 x 210 mm / 17.7 x 10.2 x 8.3 inch |
| Notes | 4 gammes d'ondes dont 1 bande étalée (BE) sur OC. Contrôle de tonalité progressif par contre-réaction. Cadre férrite incorporé orientable. Commutateur de gammes à 6 positions dont deux pour GO et PO sur cadre (GOc, POc). Façade décorée polysytrène. Les décors peuvent varier. |
| Net weight (2.2 lb = 1 kg) | 7.7 kg / 16 lb 15.4 oz (16.96 lb) |
| Mentioned in | -- Original prospect or advert |
Model page created by Matteo Agustoni. See "Data change" for further contributors.
