PR600

PR600; Océanic, ITT Océanic (ID = 2424098) Radio
Use red slider bar for more.
PR600; Océanic, ITT Océanic (ID = 2424098) Radio

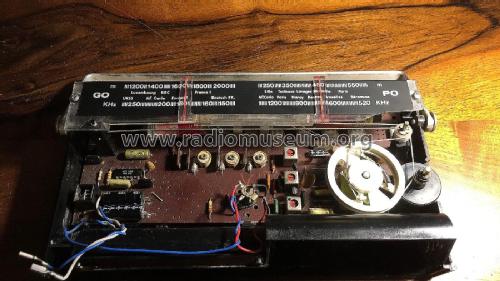

Océanic, ITT Océanic: PR600 [Radio] ID = 2424098 1400x1049
Select picture or schematic to display from thumbnails on the right and click for download.
For model PR600, Océanic, ITT Océanic; Paris

Country:  France
Manufacturer / Brand:  Océanic, ITT Océanic; Paris
Year: 1972/1973 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 3: TJA0120 TJA0121 TJA0122 TBA820 SFD112 SFD107
Main principle Superheterodyne (common); ZF/IF 480 kHz; 1 AF stage(s)
Tuned circuits 4 AM circuit(s)
Wave bands Broadcast (MW) and Long Wave.
Details
Power type and voltage Dry Batteries / 6 x 1.5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
Power out 1 W (unknown quality)
from Radiomuseum.org Model: PR600 - Océanic, ITT Océanic; Paris
Material Plastics (no bakelite or catalin)
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 272 x 149 x 62 mm / 10.7 x 5.9 x 2.4 inch
Notes

2 gammes d'ondes: PO de 520 à 1600 kHz, GO de 148 à 268 kHz. 3 touches préréglées: Europe, Luxembourg et France Inter. Antenne ferrite incorporée. Prise écouteur avec coupure du HP incorporé de 80 x 120 mm, Z = 8 ohms.

Mentioned in -- Original-techn. papers.

Model page created by Mark Hippenstiel. See "Data change" for further contributors.
