PR605

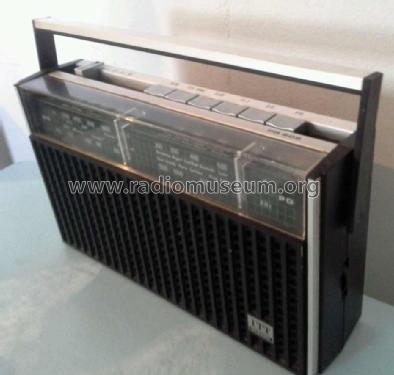

PR605; Océanic, ITT Océanic (ID = 1876558) Radio PR605; Océanic, ITT Océanic (ID = 1880404) Radio
Use red slider bar for more.
PR605; Océanic, ITT Océanic (ID = 1876558) Radio
Océanic, ITT Océanic: PR605 [Radio] ID = 1876558 1200x616
Select picture or schematic to display from thumbnails on the right and click for download.
For model PR605, Océanic, ITT Océanic; Paris:
ebay.fr #131586823330 seller b.b9370

Country:  France
Manufacturer / Brand:  Océanic, ITT Océanic; Paris
Year: 1975/1976 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 3: TJA120 TJA121 TJA122 TBA820 SFD112 SFD107
Main principle Superheterodyne (common)
Wave bands Broadcast (MW) and Long Wave.
Details
Power type and voltage Dry Batteries / C: 6 x 1.5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
Power out 0.9 W (unknown quality)
from Radiomuseum.org Model: PR605 - Océanic, ITT Océanic; Paris
Material Plastics (no bakelite or catalin)
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 269 x 150 x 66 mm / 10.6 x 5.9 x 2.6 inch
Notes

2 gammes d'ondes PO de 520 à 1600 kHz, et GO de 145 à 268 kHz. 3 touches préréglées: Europe, France 1 et Luxembourg ou Radio Monte-Carlo. Antenne ferrite incorporée. HP elliptique 80 x 120 mm, Z = 8 ohms.

Poids avec piles.

Net weight (2.2 lb = 1 kg) 1.250 kg / 2 lb 12.1 oz (2.753 lb)
Mentioned in -- Original-techn. papers.

Model page created by Mark Hippenstiel. See "Data change" for further contributors.
