Radiophono Océan
Use red slider bar for more.
Océanic, ITT Océanic: Radiophono Océan [Radio] ID = 2023629 400x548
Select picture or schematic to display from thumbnails on the right and click for download.
|
|
||||
| Year: 1954 | Category: Broadcast Receiver - or past WW2 Tuner | ||||
| Valves / Tubes | 6: 6AJ8 6BA6 6AV6 6AQ5 EM34 6Y4 |
|---|
| Main principle | Superheterodyne (common) |
|---|---|
| Wave bands | Broadcast, Long Wave and 2 x Short Wave. |
| Details | Record Player (not changer) |
| Power type and voltage | Alternating Current supply (AC) |
| Loudspeaker | Permanent or electro-dynamic (moving coil), system not known yet. |
| Power out | |
| from Radiomuseum.org | Model: Radiophono Océan - Océanic, ITT Océanic; Paris |
| Material | Wooden case |
| Shape | Tablemodel, low profile (big size). |
| Dimensions (WHD) | 580 x 410 x 370 mm / 22.8 x 16.1 x 14.6 inch |

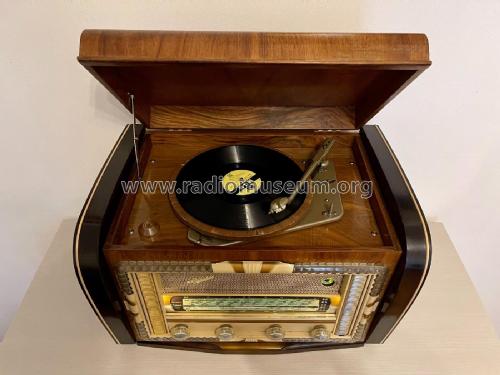

| Notes | Combiné radio-phono équipé du châssis L'Océan et une tourne-disque Mélodyne. 4 gammes d'ondes dont une bande étalée (BE) sur OC. Contrôle tonalité progressif par contre-réaction. Ébénisterie verni, façade lumineuse. |
| Net weight (2.2 lb = 1 kg) | 16 kg / 35 lb 3.9 oz (35.242 lb) |
| Mentioned in | -- Original prospect or advert |
Model page created by Mark Hippenstiel. See "Data change" for further contributors.
