RP49T
Use red slider bar for more.

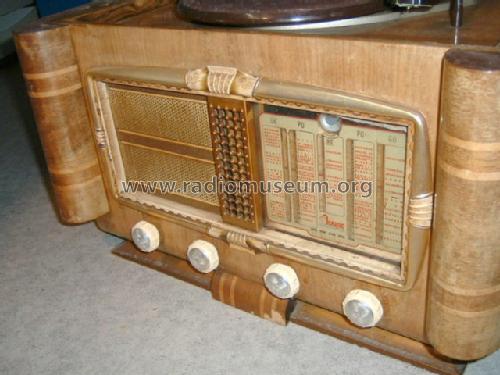

Océanic, ITT Océanic: RP49T [Radio] ID = 382448 568x480
Select picture or schematic to display from thumbnails on the right and click for download.
|
|
||||
| Year: 1952 ? | Category: Broadcast Receiver - or past WW2 Tuner | ||||
| Valves / Tubes | 6: 6BE6 6BA6 6AT6 6AQ5 6AF4 6X4 |
|---|
| Main principle | Superheterodyne (common) |
|---|---|
| Wave bands | Broadcast, Long Wave and 2 x Short Wave. |
| Details | Record Player (not changer) |
| Power type and voltage | Alternating Current supply (AC) / 110; 125; 145; 220; 245 Volt |
| Loudspeaker | Permanent or electro-dynamic (moving coil), system not known yet. / Ø 15 cm = 5.9 inch |
| Power out | |
| from Radiomuseum.org | Model: RP49T - Océanic, ITT Océanic; Paris |
| Material | Wooden case |
| Shape | Tablemodel, low profile (big size). |
| Dimensions (WHD) | 590 x 380 x 380 mm / 23.2 x 15 x 15 inch |
| Notes | Tuning dial with mirror effect, Two shortwave bands: the complete SW band plus BE = bande étalonnée = bandspread 49 m. The record player is made by Collaro in the UK. IF transformers and antenna/oscillator unit manufactured by Oréor. |
| Source of data | - - Data from my own collection |
Model page created by Georges Van Campenhout. See "Data change" for further contributors.
