RP49G
Use red slider bar for more.

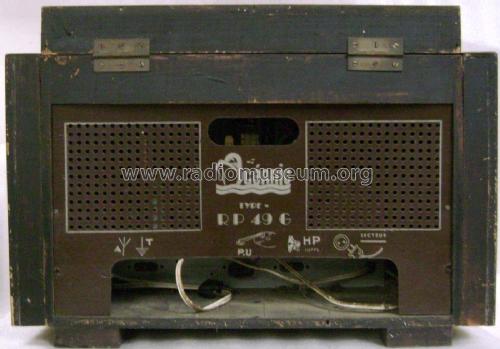

Océanic, ITT Océanic: RP49G [Radio] ID = 1823928 1400x1050
Select picture or schematic to display from thumbnails on the right and click for download.
|
|
||||
| Year: 1951 ? | Category: Broadcast Receiver - or past WW2 Tuner | ||||
| Valves / Tubes | 6: 6BE6 6BA6 6AV6 6AQ5 EM34 6X4 |
|---|
| Main principle | Superheterodyne (common) |
|---|---|
| Wave bands | Broadcast, Long Wave and 2 x Short Wave. |
| Details | Record Player (not changer) |
| Power type and voltage | Alternating Current supply (AC) / 110-240 Volt |
| Loudspeaker | Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) |
| Power out | |
| from Radiomuseum.org | Model: RP49G - Océanic, ITT Océanic; Paris |
| Material | Wooden case |
| Shape | Tablemodel, low profile (big size). |
| Dimensions (WHD) | 550 x 360 x 360 mm / 21.7 x 14.2 x 14.2 inch |
| Notes | 2 OC dont une bande étalée (BE). Voir aussi modèle RP49G sur marque Victory dans ébénisterie differente. |
| Mentioned in | Le grand livre de la TSF (Doctsf Ref 16332) |
Model page created by David Drossart. See "Data change" for further contributors.
