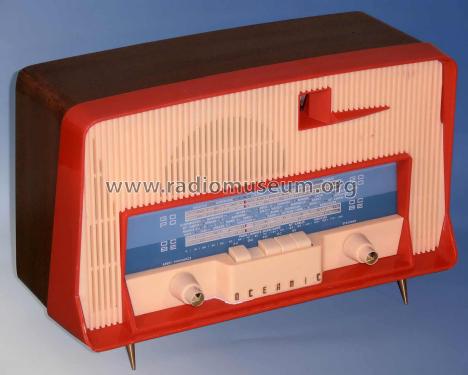

Océanic, ITT Océanic: Super-Pirate [Radio] ID = 2307298 1400x1033
Select picture or schematic to display from thumbnails on the right and click for download.
|
|
||||
| Year: 1959/1960 | Category: Broadcast Receiver - or past WW2 Tuner | ||||
| Valves / Tubes | 5: ECH81 EBF80 ECL82 EZ80 EM81 |
|---|
| Main principle | Superheterodyne (common) |
|---|---|
| Wave bands | Broadcast, Long Wave and 2 x Short Wave. |
| Details | |
| Power type and voltage | Alternating Current supply (AC) / 110-245 Volt |
| Loudspeaker | Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 11 cm = 4.3 inch |
| Power out | |
| from Radiomuseum.org | Model: Super-Pirate - Océanic, ITT Océanic; Paris |
| Material | Wooden case |
| Shape | Tablemodel with Push Buttons. |
| Dimensions (WHD) | 340 x 240 x 150 mm / 13.4 x 9.4 x 5.9 inch |

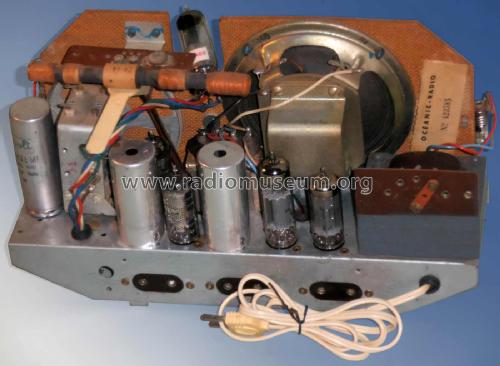

| Notes | 4 gammes d'ondes dont une bande étalée. Cadre PO-GO non orientable. Prise PU et HPS. Coffret en ivoire ou rouge avec contour rouge, devant en plastique. Dessus, côtes et dessous en bois verni. Voir aussi modèle Pirate 59 avec châssis très similaire. |
| Price in first year of sale | 261.19 FRF |
| Literature/Schematics (1) | -- Original prospect or advert |
| Literature/Schematics (2) | - - Manufacturers Literature (Tarif détail 1959) |
Model page created by Bekir Yurdakul. See "Data change" for further contributors.
