T1710
Use red slider bar for more.

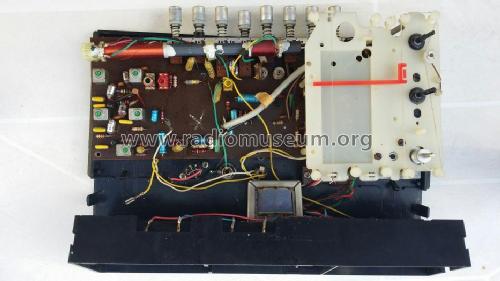

Océanic, ITT Océanic: T1710 [Radio] ID = 1870323 933x525
Select picture or schematic to display from thumbnails on the right and click for download.
|
|
||||
| Year: 1970 | Category: Broadcast Receiver - or past WW2 Tuner | ||||
| Semiconductors (the count is only for transistors) | 9: BF233 BF233 BF233 BC252 BC172 AC126 AC187 AC188 AC188 SFD112 SFD107 B30C300 Diode_Zener |
|---|
| Main principle | Superheterodyne (common); ZF/IF 480 kHz |
|---|---|
| Wave bands | Broadcast, Long Wave and Short Wave. |
| Details | |
| Power type and voltage | Line / Batteries (any type) / AC: 110; 220 / BATT: 2 x 4,5 or 6 x 1,5 Volt |
| Loudspeaker | Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical |
| Power out | |
| from Radiomuseum.org | Model: T1710 - Océanic, ITT Océanic; Paris |
| Material | Plastics (no bakelite or catalin) |
| Shape | Portable set > 8 inch (also usable without mains) |
| Dimensions (WHD) | 320 x 198 x 95 mm / 12.6 x 7.8 x 3.7 inch |
| Notes | Haut-parleur ovale 12 x 19 cm. 3 stations présélectionnées: FR1, Luxemburg and Europe1. |
| Net weight (2.2 lb = 1 kg) | 2.8 kg / 6 lb 2.7 oz (6.167 lb) |

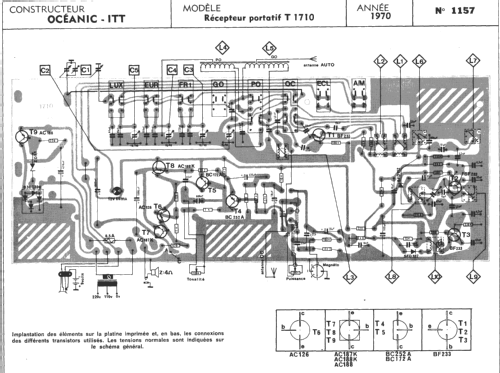

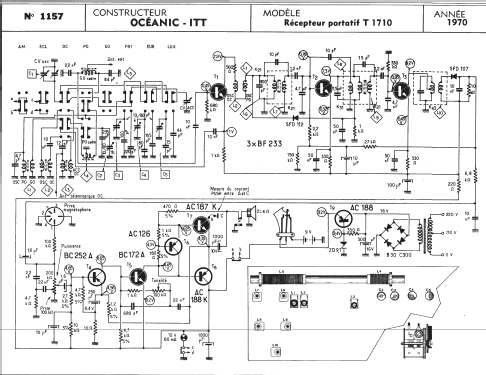

| Literature/Schematics (1) | -- Schematic |
Model page created by Peter Hoddow. See "Data change" for further contributors.
